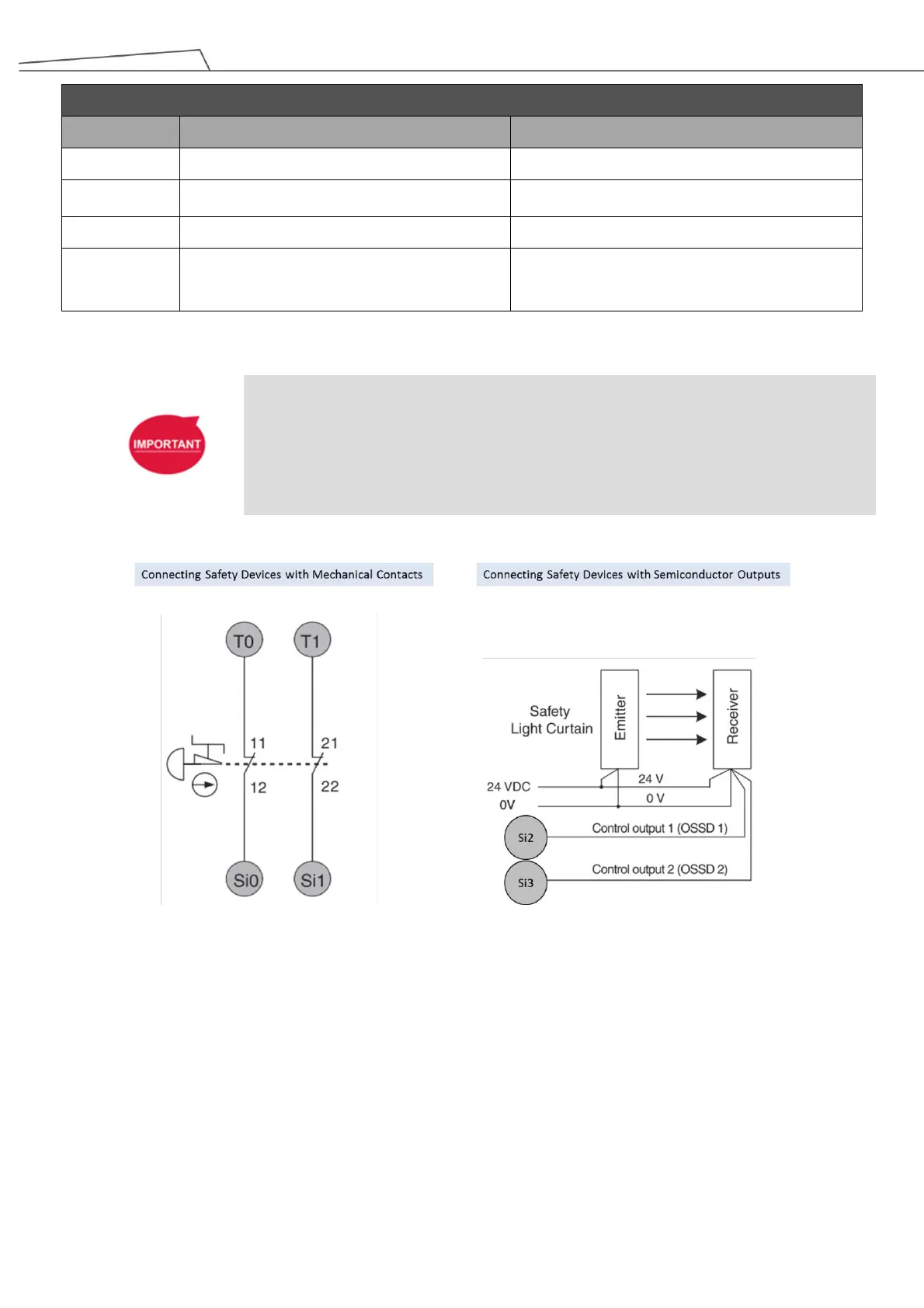

Table 19: Safety controller (G9SP) pin definition

IMPORTANT:

Assure the following steps when connecting Safety Controller to external safeguard

devices.

1. Power off the system

2. Free the I/O by unplugging SI2/SI3 – SI8/SI9 from the pull-high 24V wire.

3. Apply isolation measure to prevent short-circuit and the emergent stop of the machine.

Figure 27: Connecting Safety Devices

Safety Output

Description

Function

SO0/SO1

Connected to SI_0 of robot control box

Emergency Stop

SO2/SO3

Connected to SI_1 of robot control box

Robot Pause

SO4/SO5

Connected to CR1/CR3 of Safety Relay

Cut Pillar Power

SO6/SO7

Connected to SI_2 of robot control box

Trigger SF4 (External Safeguard-Human-

Machine Safety Settings)
