TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 101
IMPORTANT:
1. The robot will automatically limit the total output if an AC 100V-199V power input is
used.
2. It is strongly recommended that the following steps are performed by skilled and
trained professionals.
2. Confirm if your primary AC power supply meets the AC Input Specifications of TM Palletizing Operator.
For details about Primary Power Input, refer to the figures below.
3. Before connecting the cable, make sure the primary power is OFF and the power switch of the
palletizing operator is OFF as well.
4. As depicted in the figure below, connect the power cable through the housing of the distribution box to
the AC Power (L/N/PE), and connect another end of the power cable to the AC IN of the palletizing
operator. Keep in mind that the palletizing machine must adopt single-phase AC 100-240V power
supply.

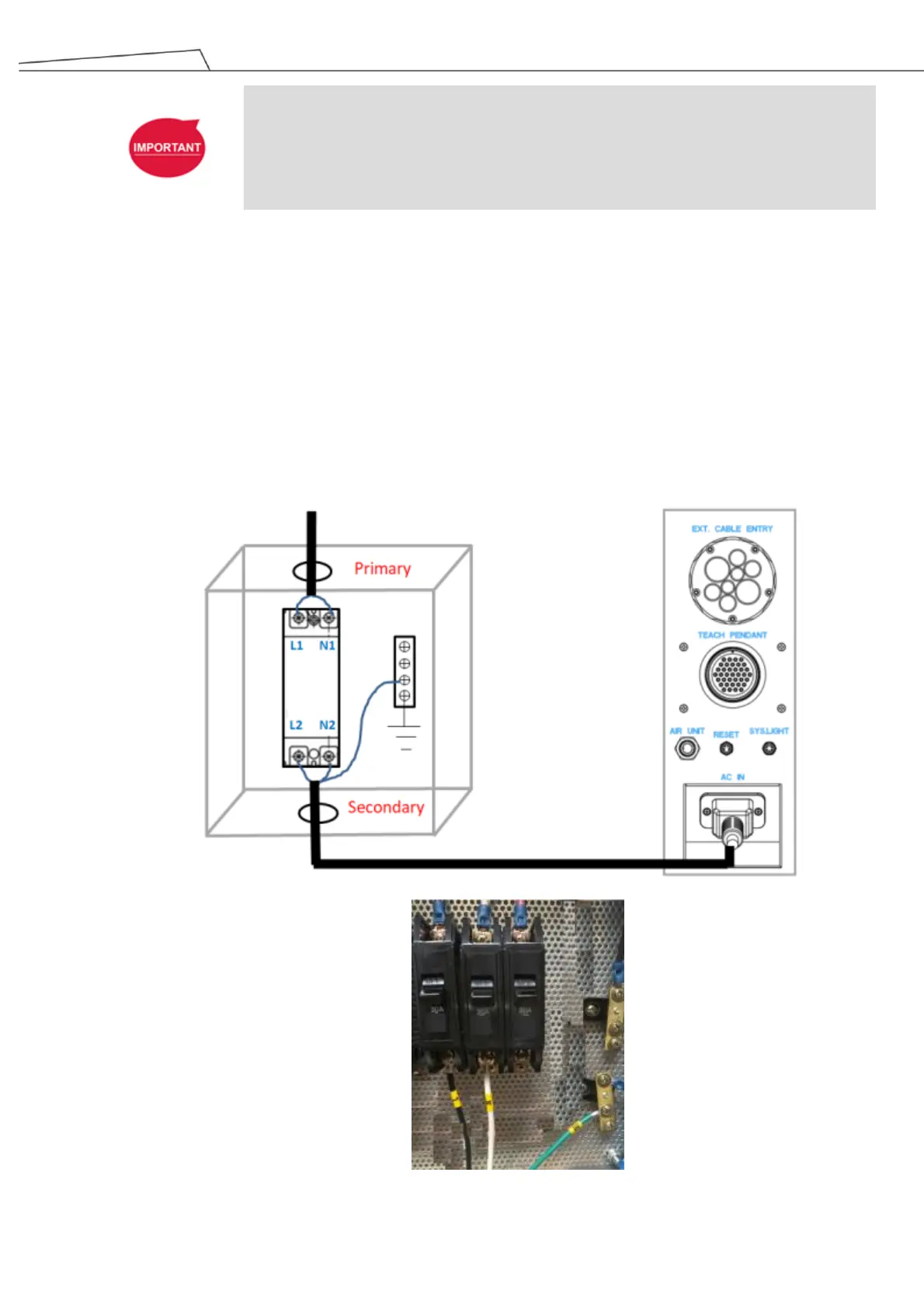

Figure 78: Power connection reference
