Techman Robot TM Palletizing Operator - Power Terminal; Table 20: Safety Controller (SF-C21) I;O I;O; Figure 29: Power Terminal (+24 V;+0 V)

To Next Page

To Previous Page

TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 69

Description

Function

SF0_0/SF0_1

Connected to SI10/SI11 of Safety

Controller G9SP

Trigger SF4 (External Safeguard-

Human-Machine Safety Settings)

SF0_2/SF0_3

Available for customer use

Output low when external safeguard device triggered.

Table 20: Safety controller (SF-C21) I/O

IMPORTANT:

Assure the following steps when connecting Safety Controller to external safety devices

1. Power off the system

2. Free the I/O by unplugging IN1/IN2 – IN7/IN8 from the pull-high 24V wire.

3. Apply isolation measure to prevent short-circuit and emergent stop of the machine.

4.9 Power Terminal

The power terminal +24V block and +0V (GND) block offer 24V/5A total capacity. These terminals are used for

external and internal device.

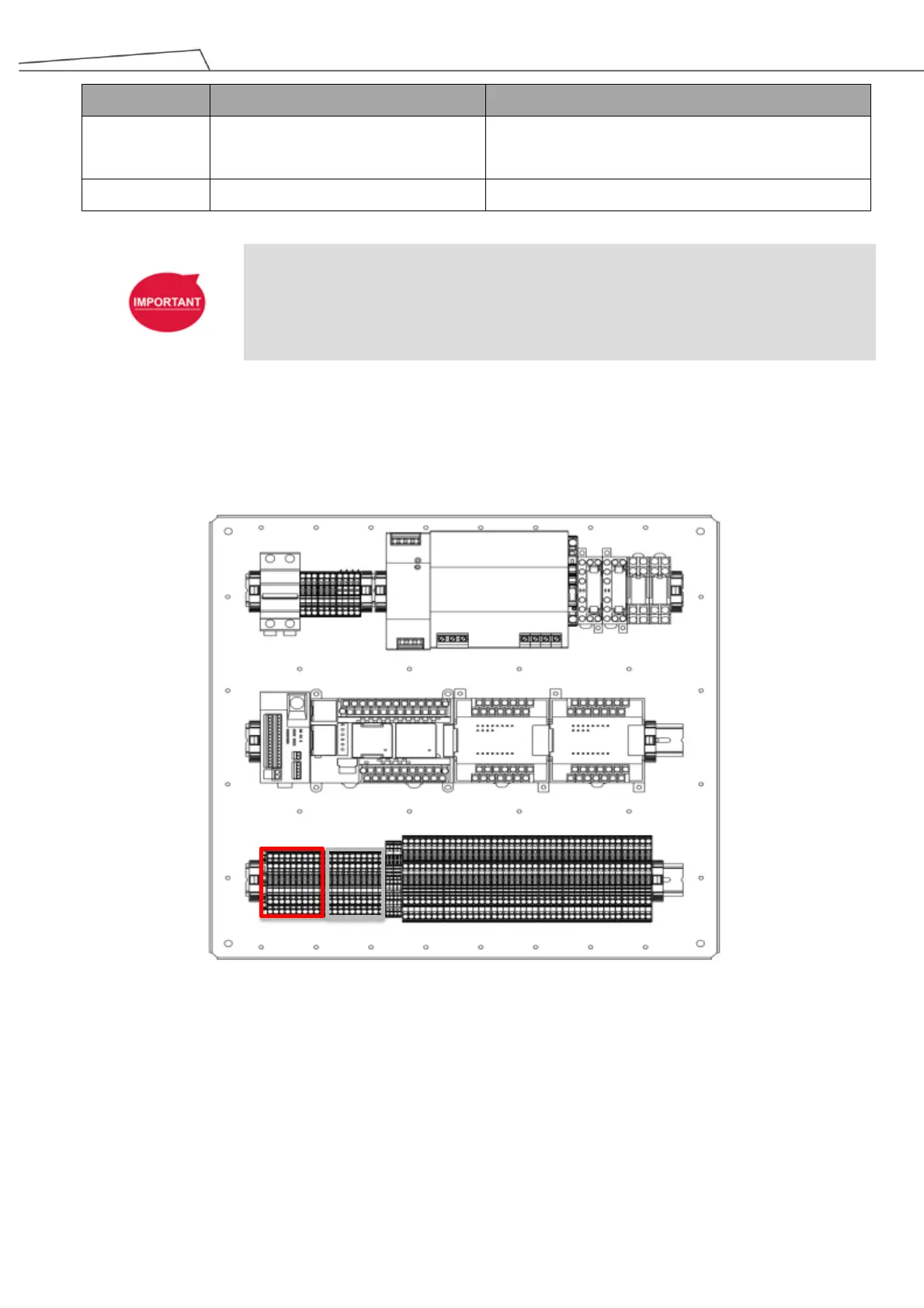

Figure 29: Power terminal (+24V/+0V)

+24V

+0V (GND)
