2. Add nodes in the subflow.

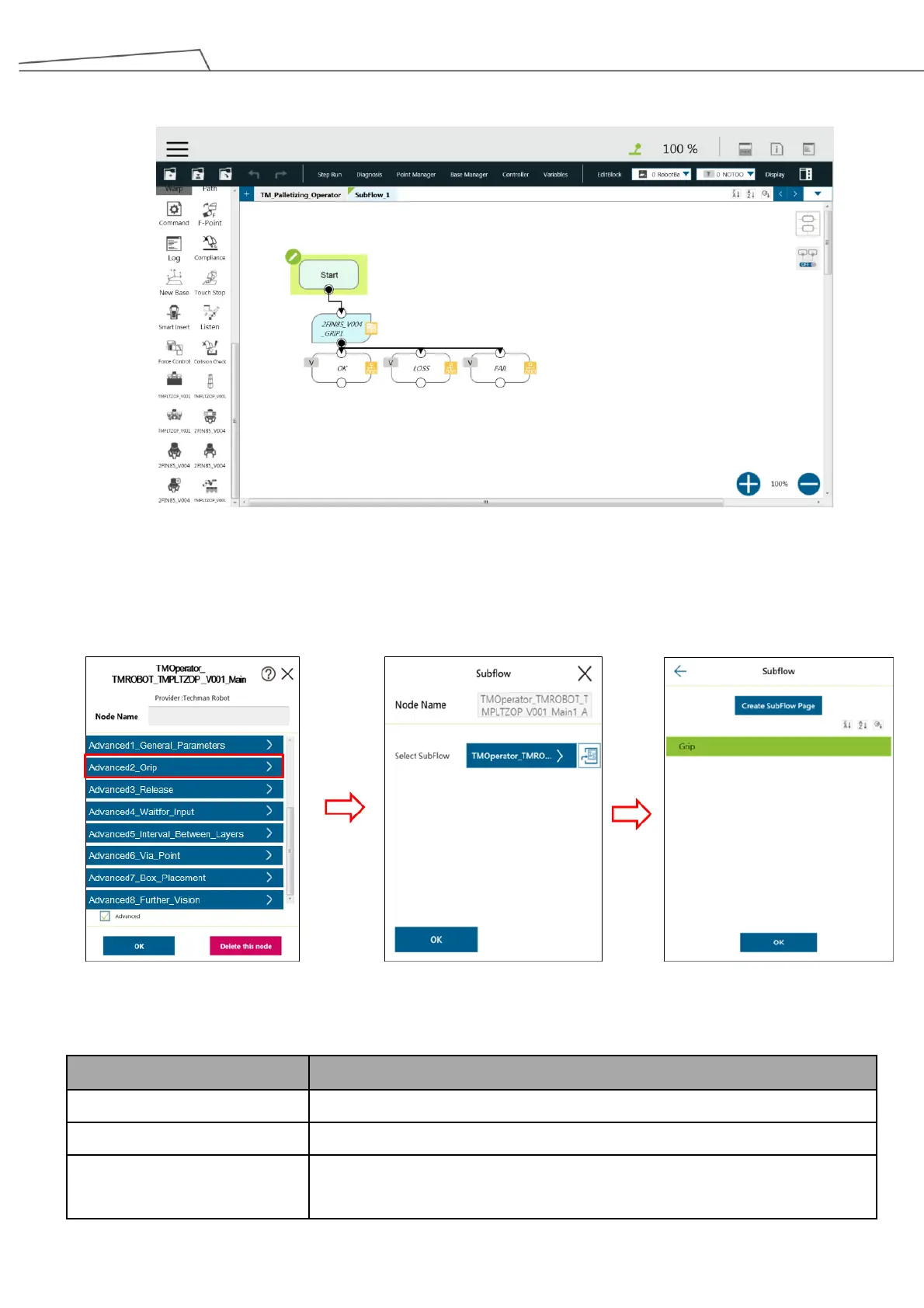

Figure 155: Add nodes in the subflow

In the following example, Advanced2_Grip is selected as the new subjflow. In this case, user-defined

parameters for the grip are being applied during the gripping flow.

Figure 156: Add nodes in the subflow

Definitions of Advanced2-8 subflows:

Parameter

Description

Advanced2_Grip

This subflow allows users to define gripping commands for the gripper.

Advanced3_Release

This subflow allows users to define release commands for the gripper.

Advanced4_Waitfor_Input

This subflow allows users to input conveyor-waiting sensor signal to ensure

proper placement of boxes.
