Parameter

Description

adjustments are based on the parameters on the current

page.

Safety Distance (mm)

When the distance of the detected object is less than this

parameter value, it would be notified as collision.

Table 28: Parameter descriptions

*Z-direction height is considered as a layer

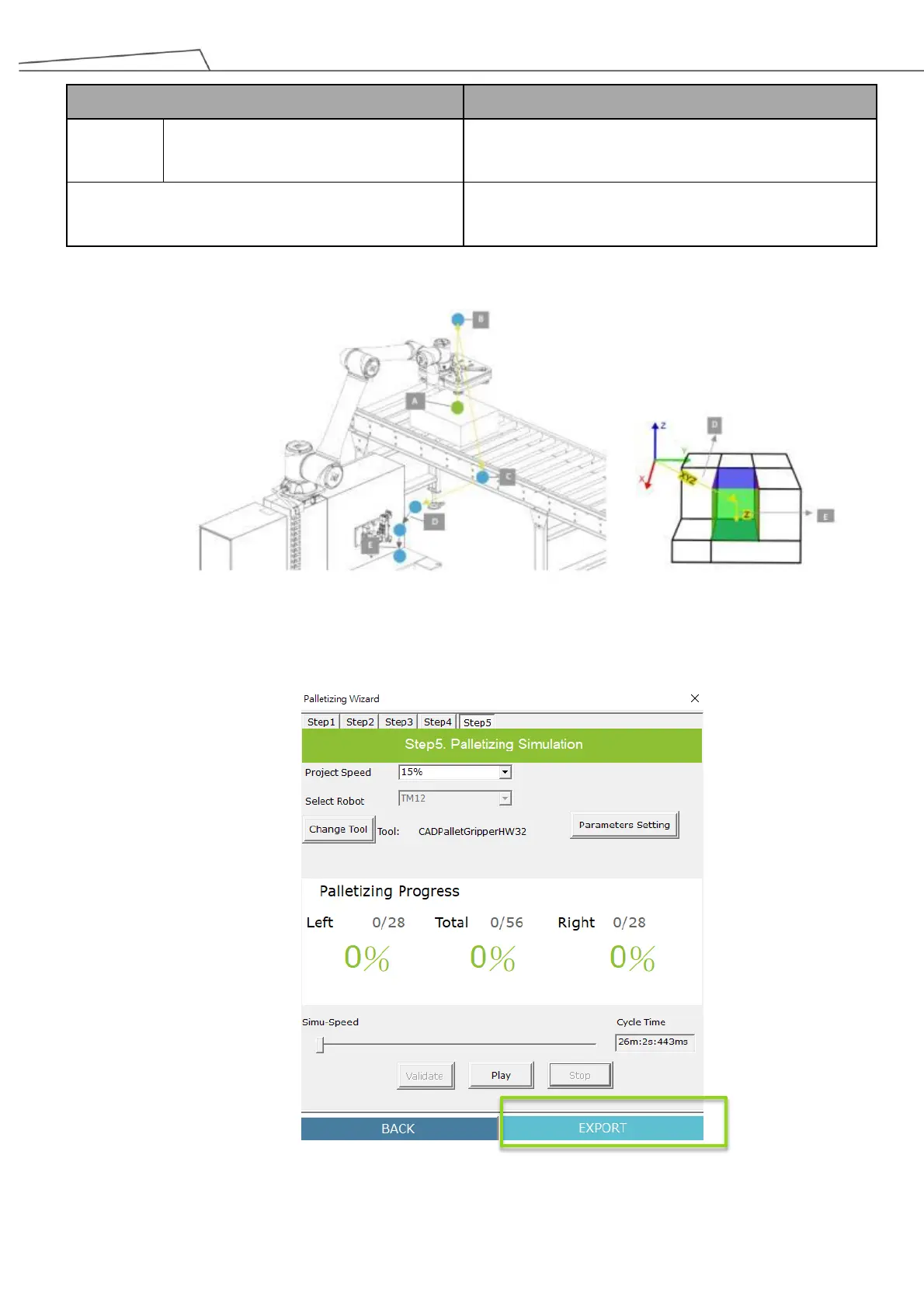

Figure 106: Palletizing parameter illustration

If all the settings are confirmed, click “EXPORT” to export the palletizing layout file.

Figure 107: Export the file
