TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 74

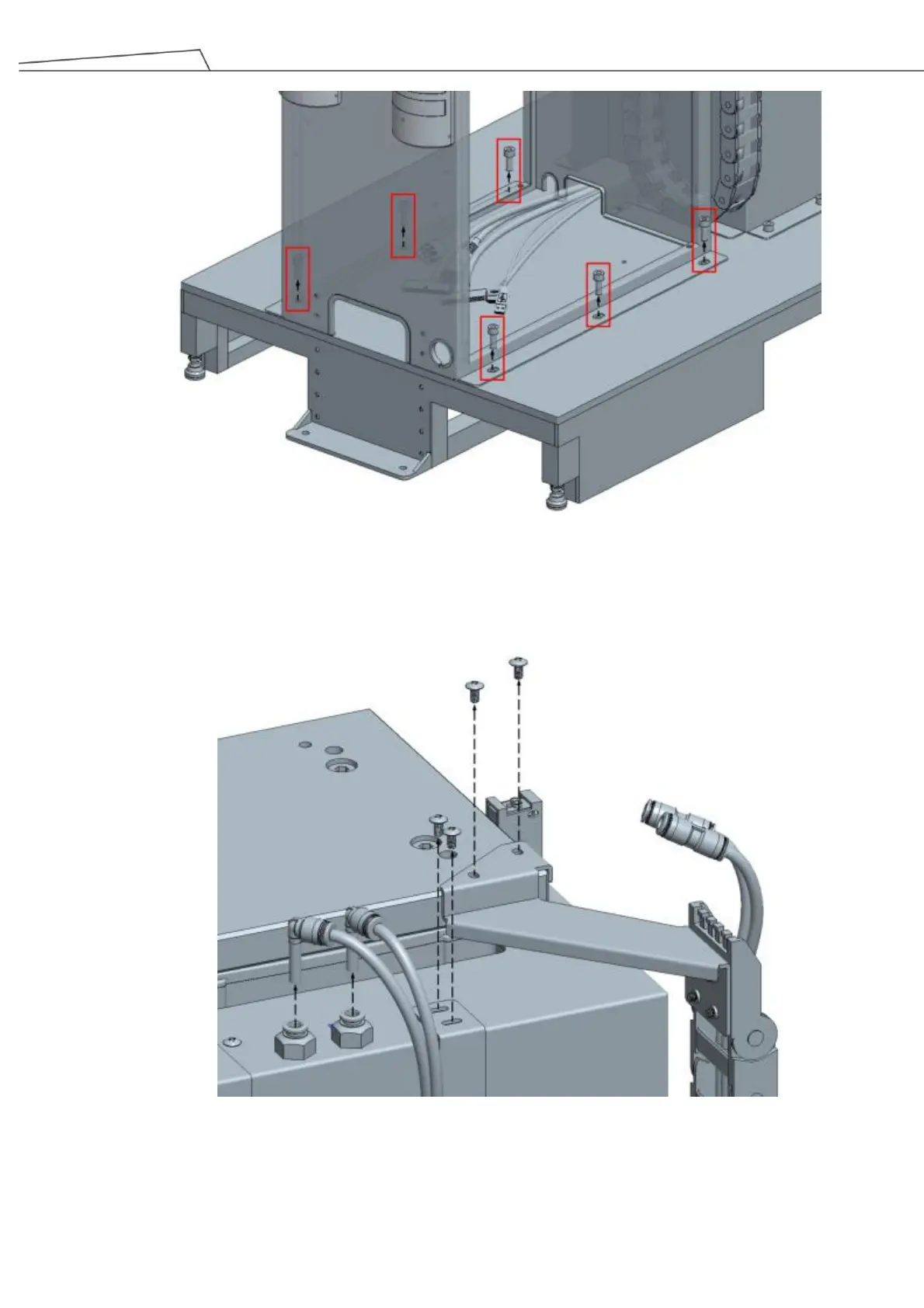

Figure 35: Remove the 6 screws

3. Unfasten the 4 screws shown in the diagram to detach the pneumatic quick connector, and then

disassemble the drag chain. Remember to keep the screws in a safe place.

Figure 36: Unfasten the 4 screws
