TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 47

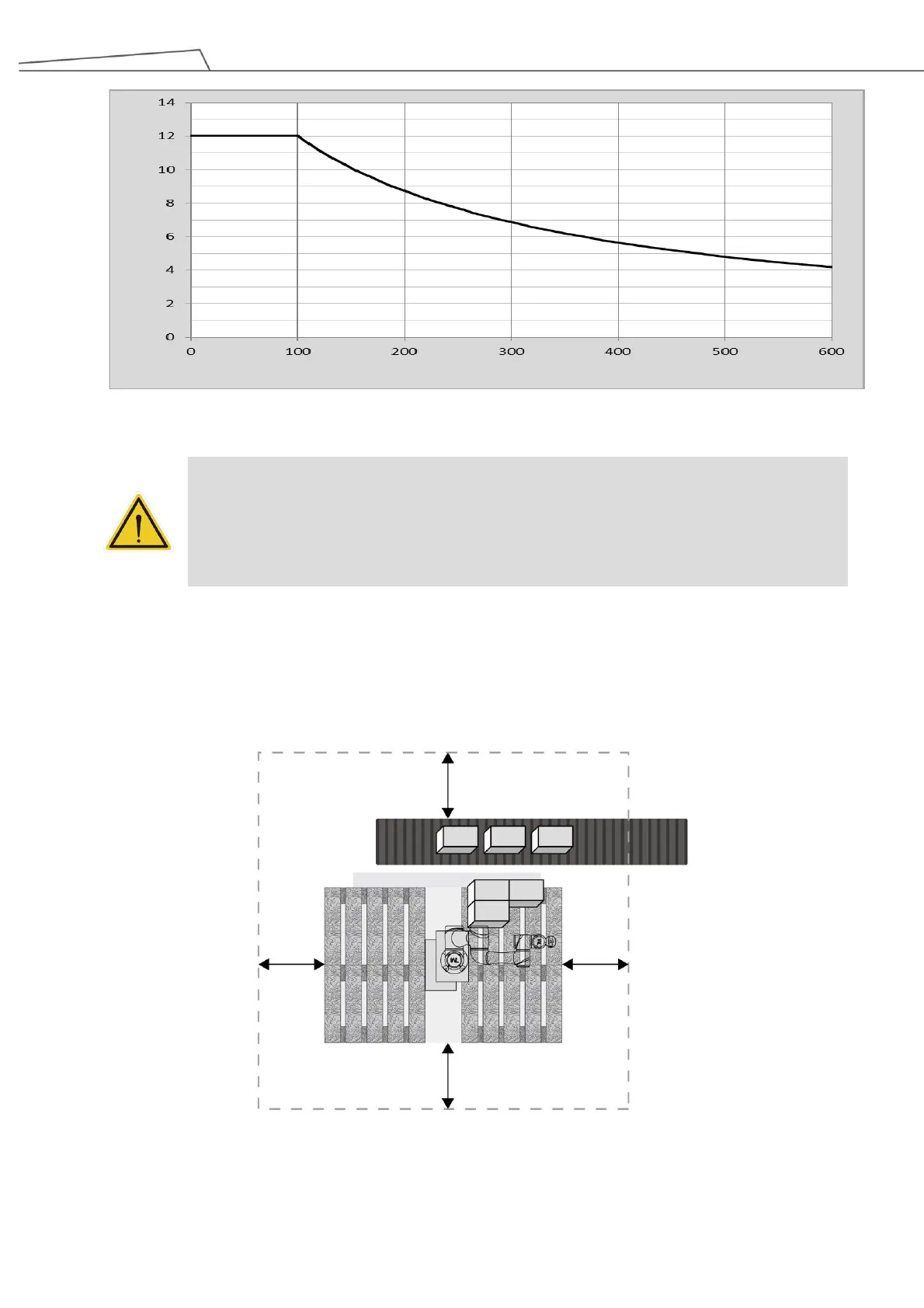

Figure 12: Relationship between Payload and the Center of Gravity Offset (mm)

WARNING:

Use the total weight of the end-effector and the payload to stay within the payload rating of the

robot. Ensure that the system never exceeds that maximum payload.

You should perform a full risk assessment that includes the end-effector and payload samples,

to ensure the safety of the entire system.

3.5 Safety Distance and Scenario

1. Clearances to avoid quasi-static contact for robot:

Reserve a distance of 500 mm around the pallet and around the picking position as shown below.

Figure 13: Palletizing operator clearance with sideways conveyor

It is necessary to reserve a distance of 500 mm from the outer boundary of the picking item and around the

Conveyor

500mm
