Techman Robot TM Palletizing Operator - Figure 117: Set I;O While Project Error; Figure 118: Set I;O While Project Stop

To Next Page

To Previous Page

TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 131

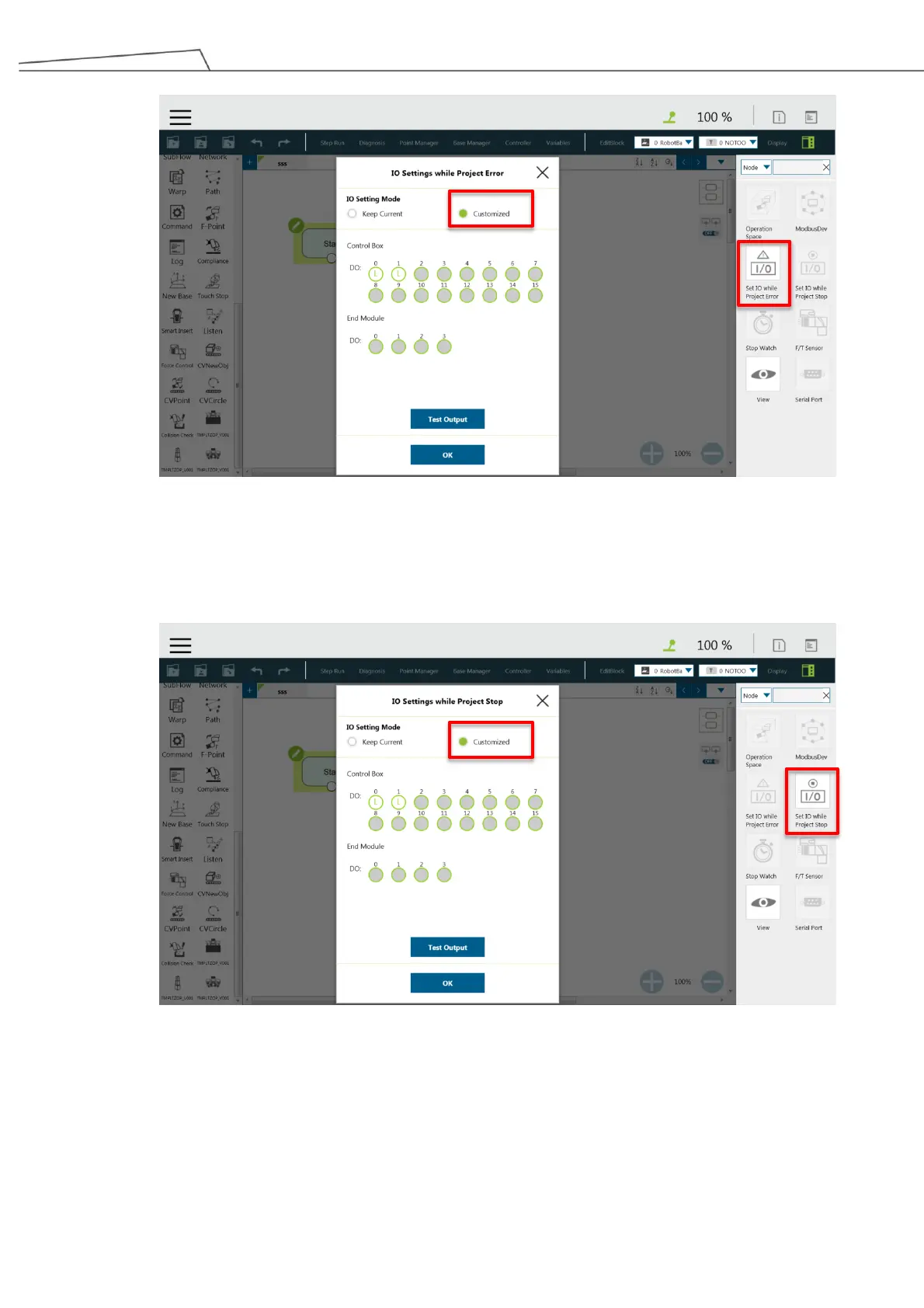

Figure 117: Set I/O while project error

3. Go to “Set I/O while Project Stop” and click “Customized”.

Under Control Box, set DO0 and DO1 as “Low”.

Figure 118: Set I/O while project stop
