TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 82

5.2.4 Installing the Rear Housing

1. Place the rear housing properly and apply 3 x M8 screws at each side as shown in the diagram.

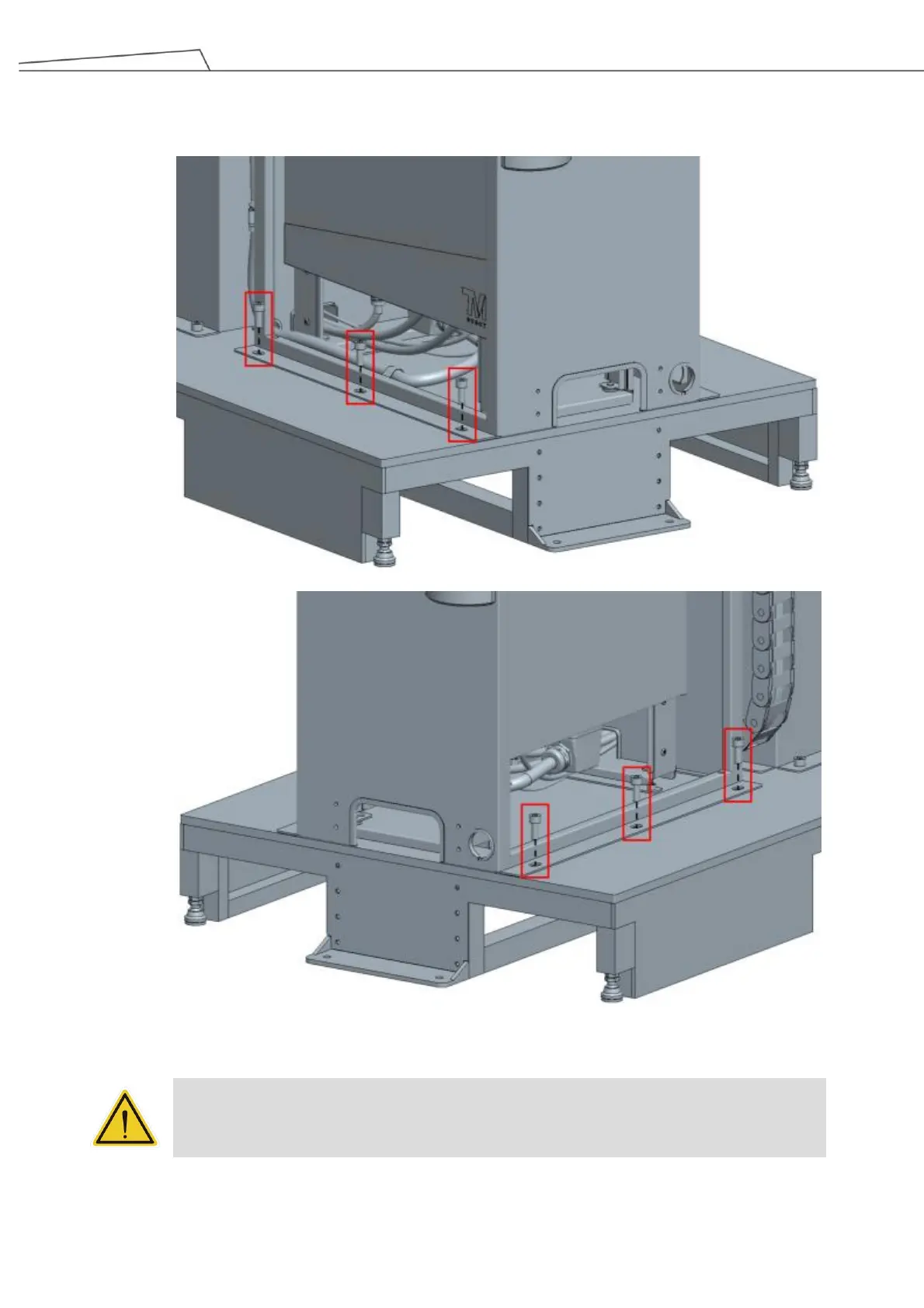

Figure 46: Place the rear housing

DANGER:

Screws must be properly tightened when using this product. Improper tightening may cause

the tool or part to fall out, or even cause personal injury and death.
