Techman Robot TM Palletizing Operator - Figure 53: Fasten the Flange Knob to Shifted Position; Figure 54: Flange Position Change Completed

To Next Page

To Previous Page

TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 86

3. Fasten flange knob to 10cm shifted position and secure it with two M6x12L screws.

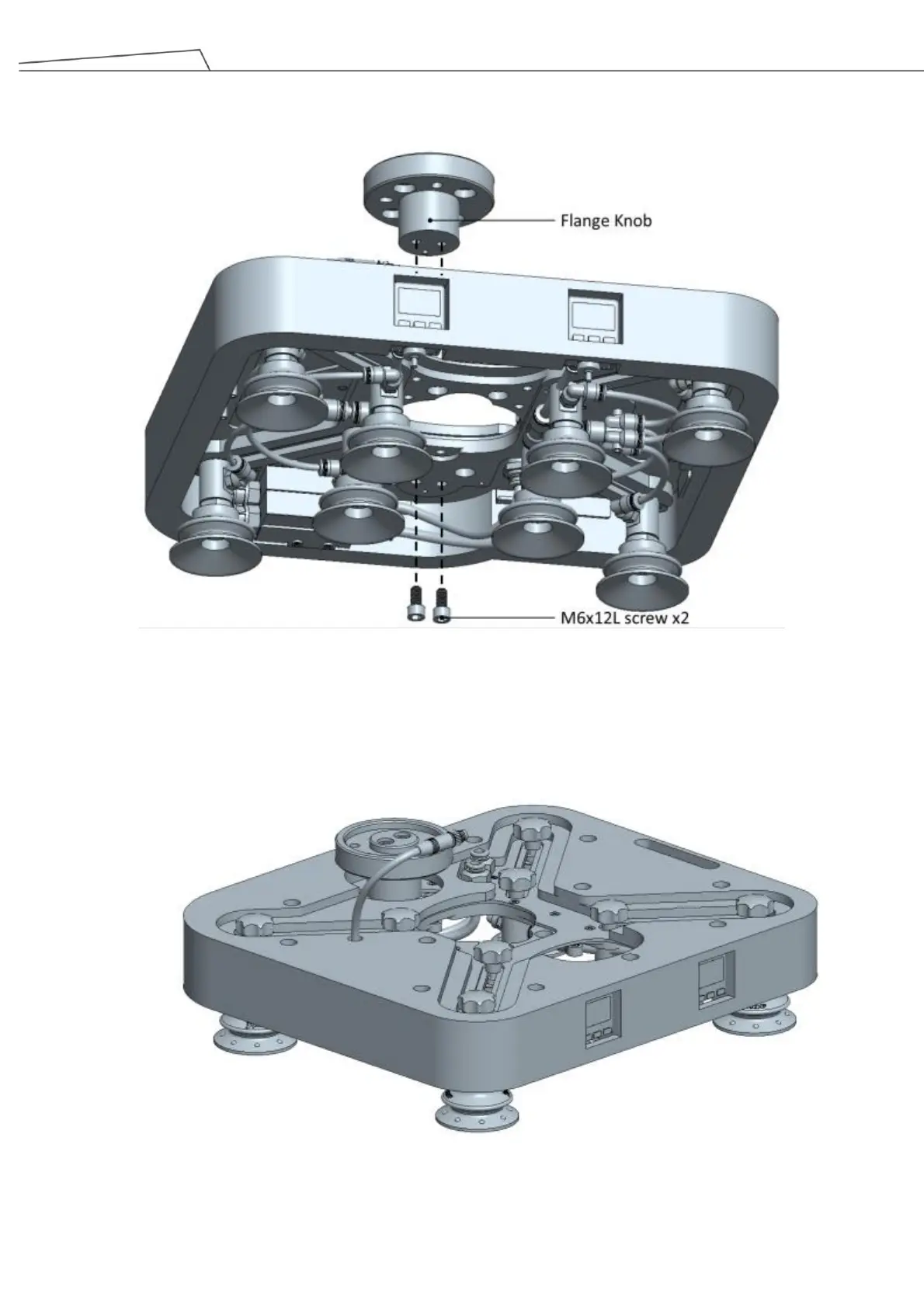

Figure 53: Fasten the flange knob to shifted position

4. The figure below shows that the flange position change is completed.

Figure 54: Flange position change completed
