Techman Robot TM Palletizing Operator - Figure 61: Penetrate the Air Tubes and Connectors (Example by Centered Gripper Position); Figure 62: Connect Air Tube Plug to the Gripper Plug

176 pages

Save Page as PDF

To Next Page

To Previous Page

TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 91

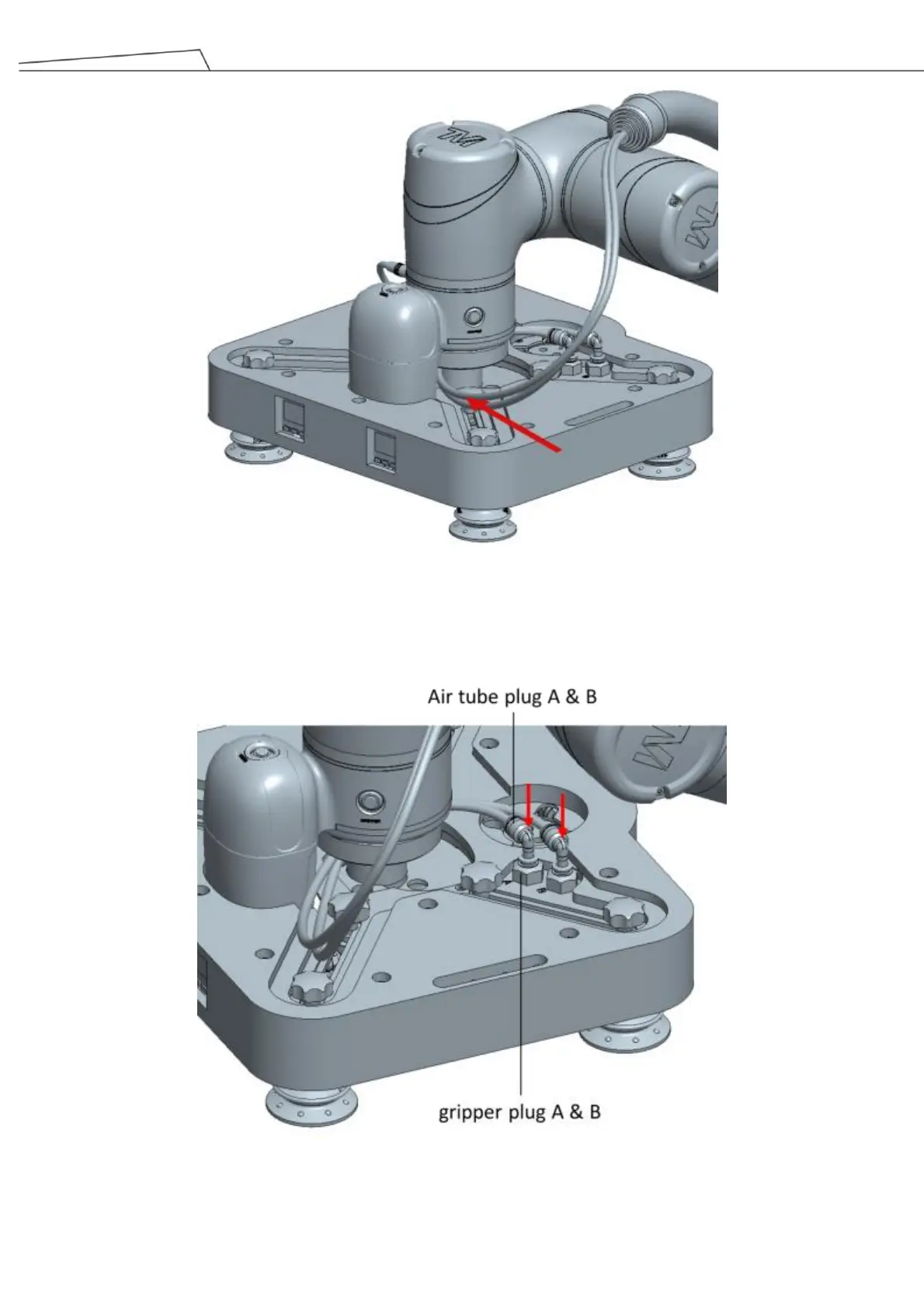

Figure 61: Penetrate the air tubes through (example by centered gripper position)

3. Connect the air tube plug to the gripper plug. Make sure the cable is connected to the corresponding

A/B plug.

Figure 62: Connect air tube plug to the gripper plug
