TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 17

1.2 Package Contents

Each carton has the following contents. Check if all the items listed in this section are included when you

unpack the cartons for the first time. If any item is missing, contact your distributor or dealership

immediately.

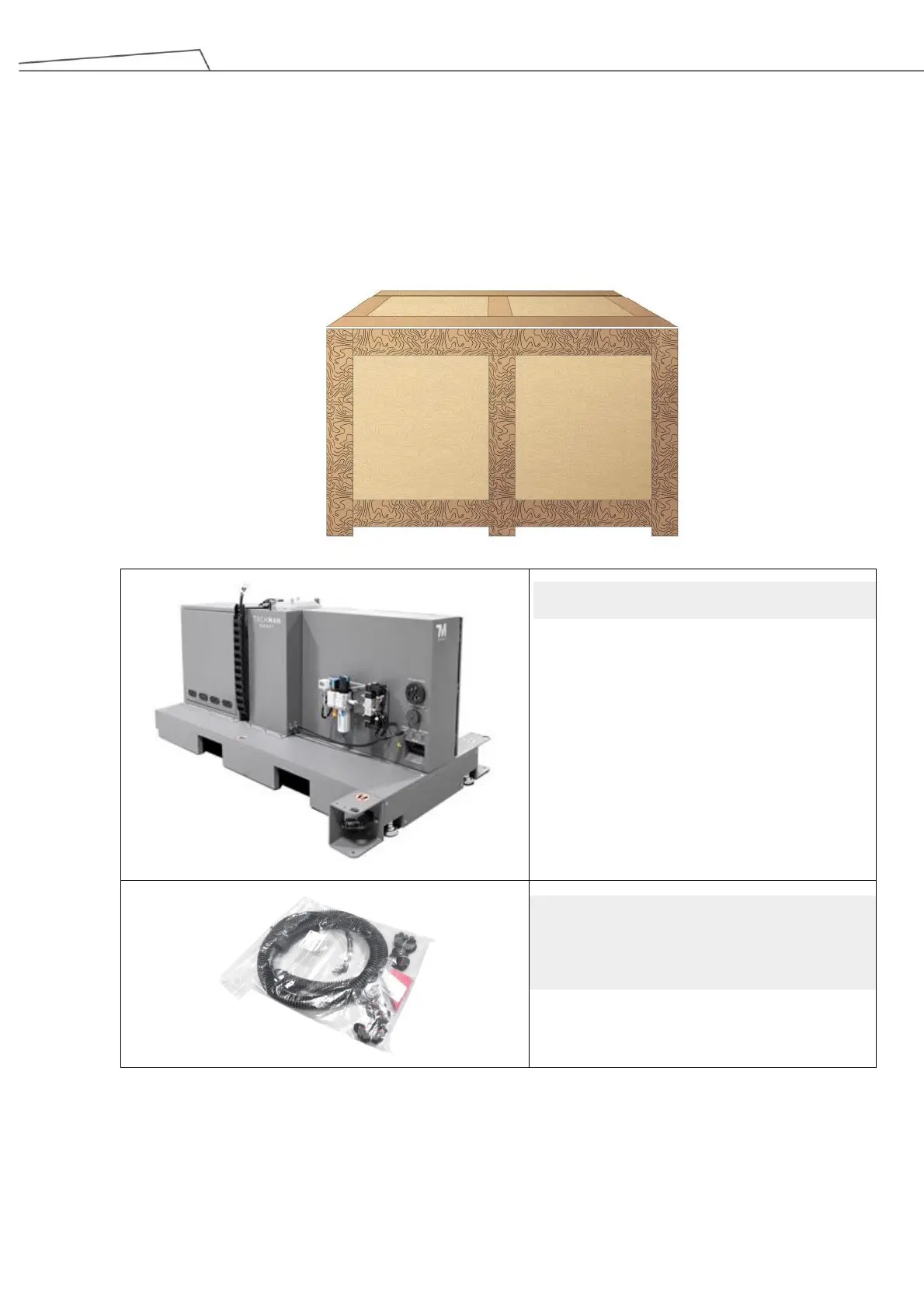

In the Palletizing System wooden shipping crate:

1 x TM Palletizing Operator Base

1 x

Flexible holder system Cable (FHS-C) set,

including 1 x 6mm tube and 2 x Tube Fittings

PLJ6
