4.5.4.1 Analog Input

Analog Input only supports a certain voltage mode and the detectable range is between -10.00V and

+10.00V.

Red = device is connected to AIN_1P

Black = device is connected to AIN_1G

Purple = device is connected to +24V

Gray = device is connected to 0V (GND)

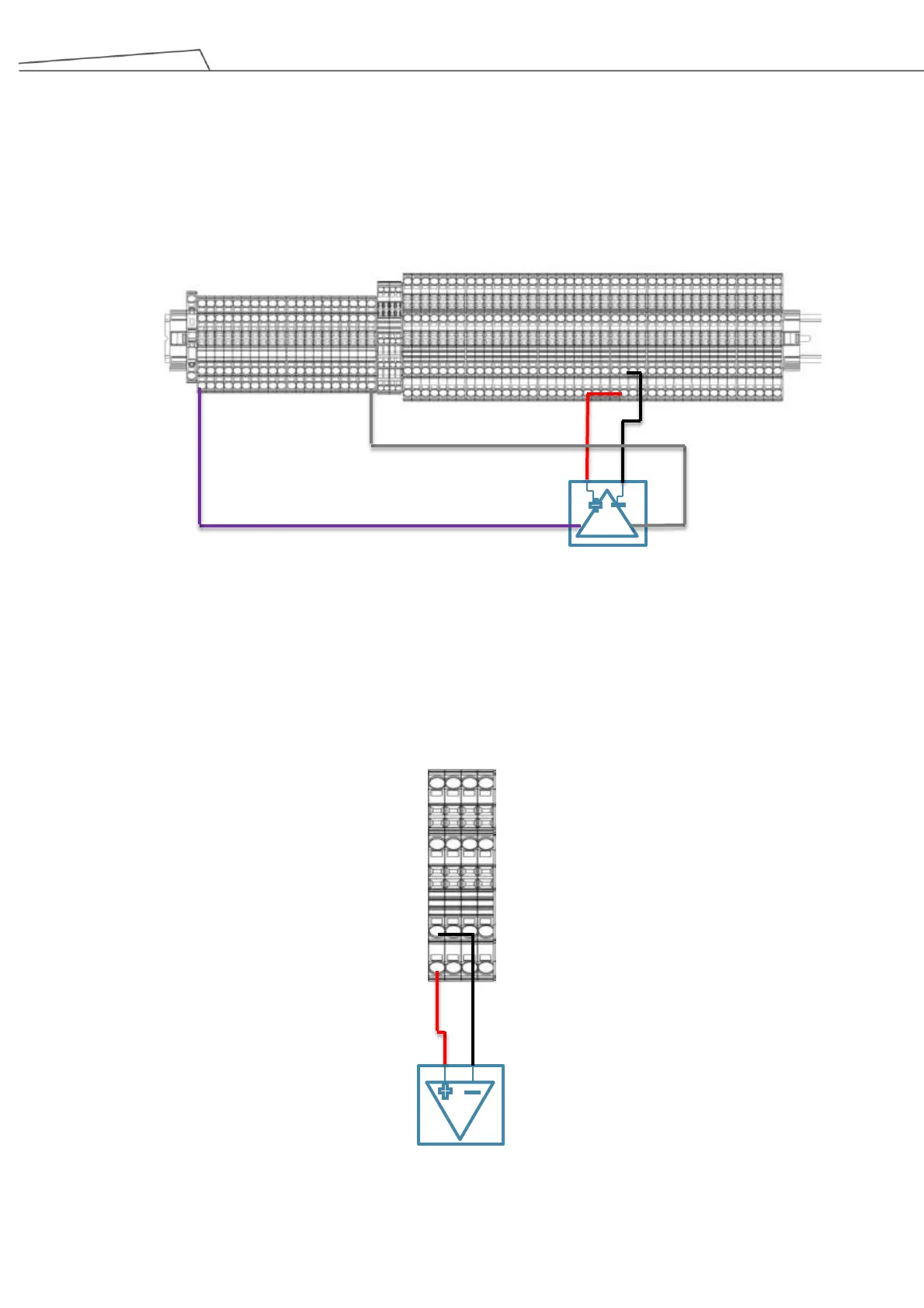

Figure 24: Analog Input application

4.5.4.2 Analog Output

Analog Output only supports a certain voltage mode and the detectable range is between -10.00V and

+10.00V.

Red = device is connected to AOUT_V

Black = device is connected to AOUT_G

Figure 25: Analog_OUT application
