1.4 Adjustable Flexible Gripper Overview

TM Palletizing Operator package provides an Adjustable Flexible Gripper set for box lifting and placement in your

palletizing projects. The following will describe the parts and characteristics of the gripper.

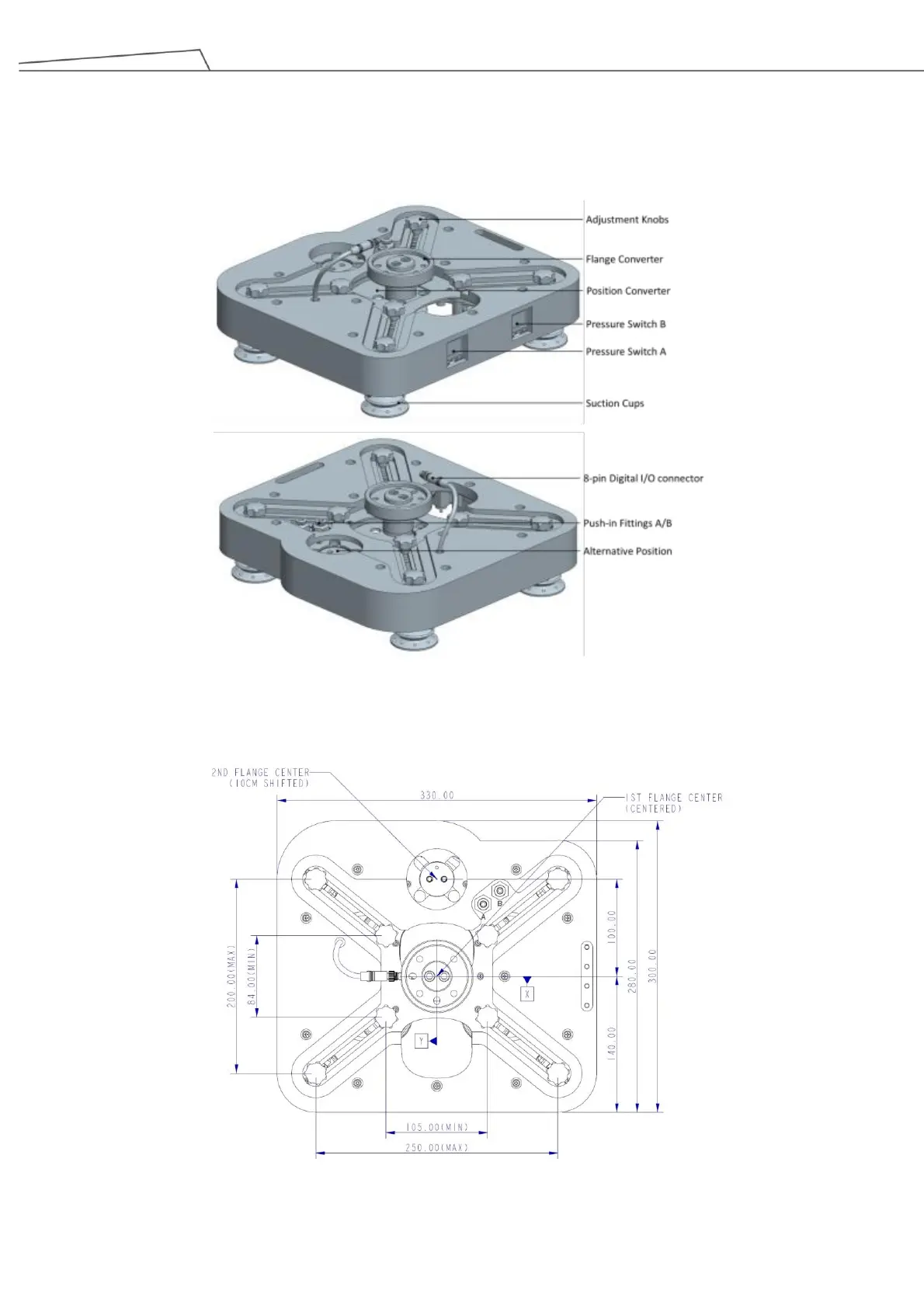

Figure 5: Adjustable Flexible Gripper Overview

1.4.1 Dimensions of Adjustable Flexible Gripper

Unit: mm
