TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 89

5.2.6 Installing Cable Protection Conduit

1. Install the cable protection conduit along the specified segments to fasten it with Velcro on the robot.

The length of each segment on the conduit:

 S1: 330mm

 S2: 250mm

 S3: 600mm

 S4: 270mm

 S5: 160mm

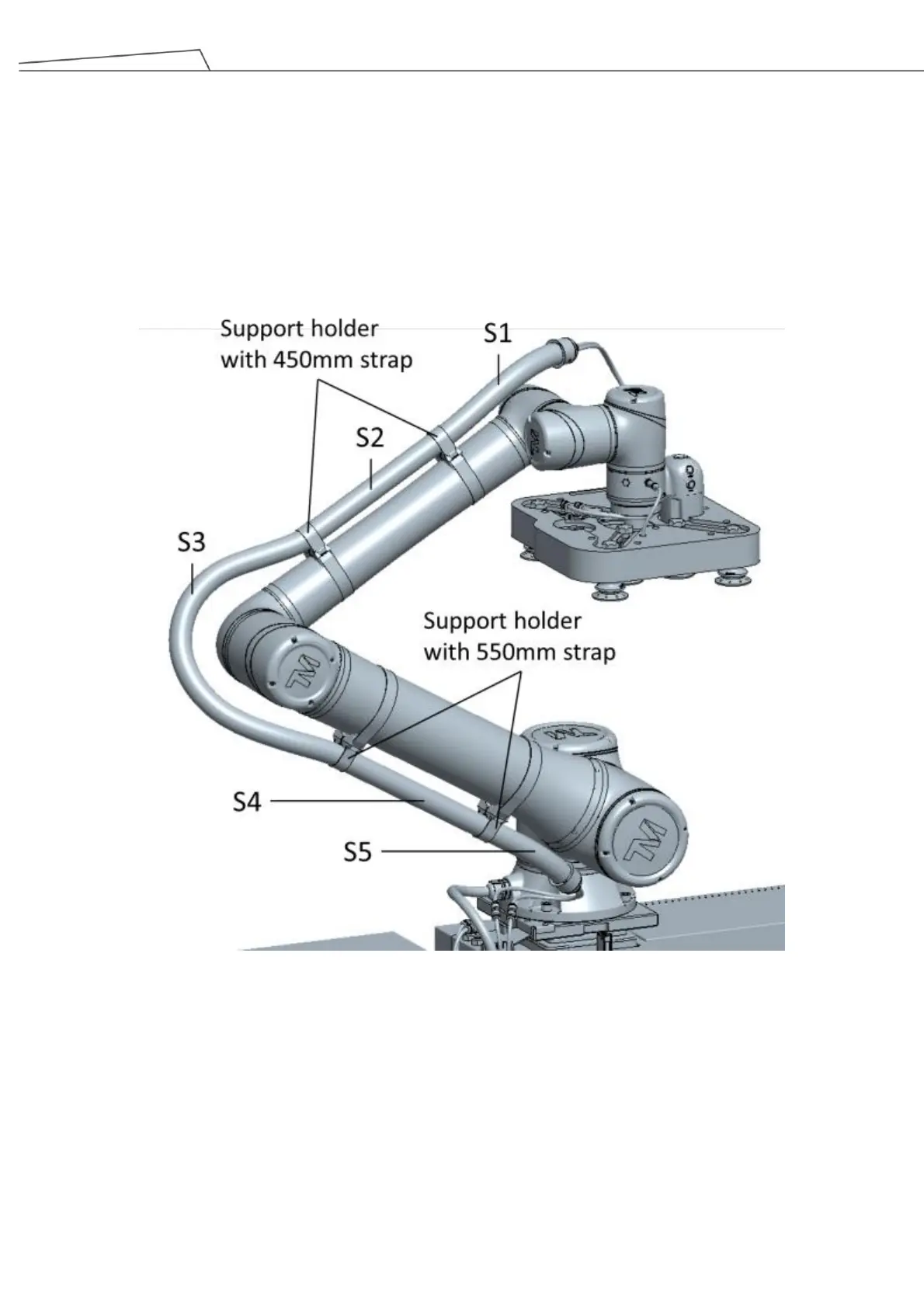

Figure 59: Segments for Velcro use
