TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 60

The available Digital Output I/O can be used to connect sensor devices with DIO interface. For details,

consult with TechMan Robot personnel regarding possible changes in TMflow software.

4.5.3.1 Considerations for Terminal

Users may connect O_COM terminal to minus/plus side of the power supply to set sink/source output

type.

 Set to sink output type

Connect O_COM terminal to the minus side of the power supply.

 Set to source output type

Connect O_COM terminal to the plus side of the power supply.

The term “LOAD” indicates the device or sensor powers. The load could be a lamp, pneumatic valve,

relay or PLC input

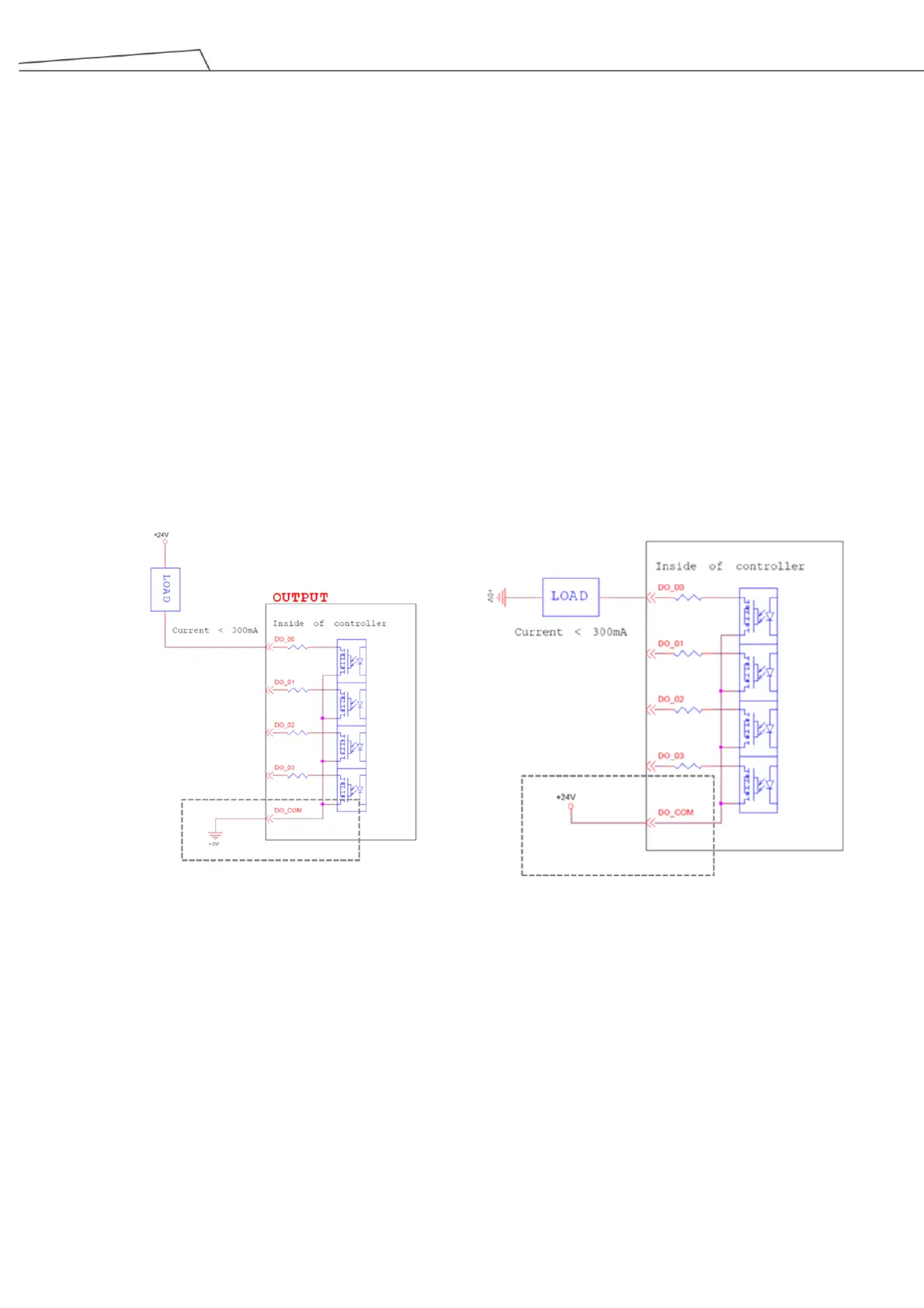

Figure 23: Digital Out and LOAD schematics
