4.6.2 Safety Output

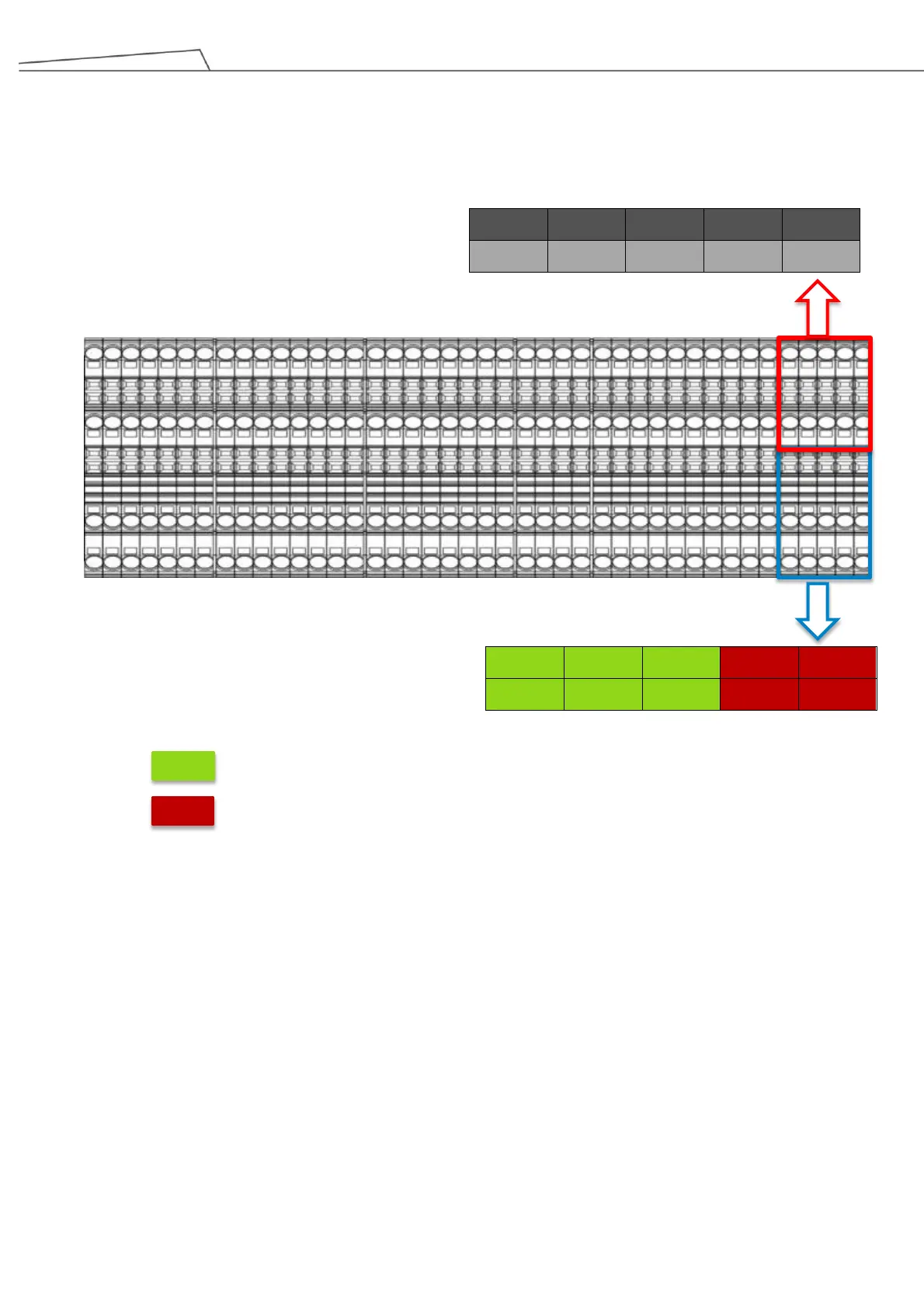

Below are Safety Output pin assignments. The I/O highlighted in red are reserved for robot control box,

while the I/O highlighted in blue come in both reserved and available I/O.

SO0_1

SO1_1

SO2_1

SO3_1

SO4_1

SO0_2

SO1_2

SO2_2

SO3_2

SO4_2

The available Safety Output I/O can be used to connect safety sensors/devices. For details, consult with

Techman Robot personnel regarding possible changes in TMflow software.

SO0_2

SO1_2

SO2_2

SO3_2

SO4_2

SO0_1

SO1_1

SO2_1

SO3_1

SO4_1

Reserved I/O

Available I/O
