Techman Robot TM Palletizing Operator - Figure 71: Using Wrench to Loosen;Tighten Leveling Mounts; Figure 72: TM Palletizing Operator Anchor Points

To Next Page

To Previous Page

TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 97

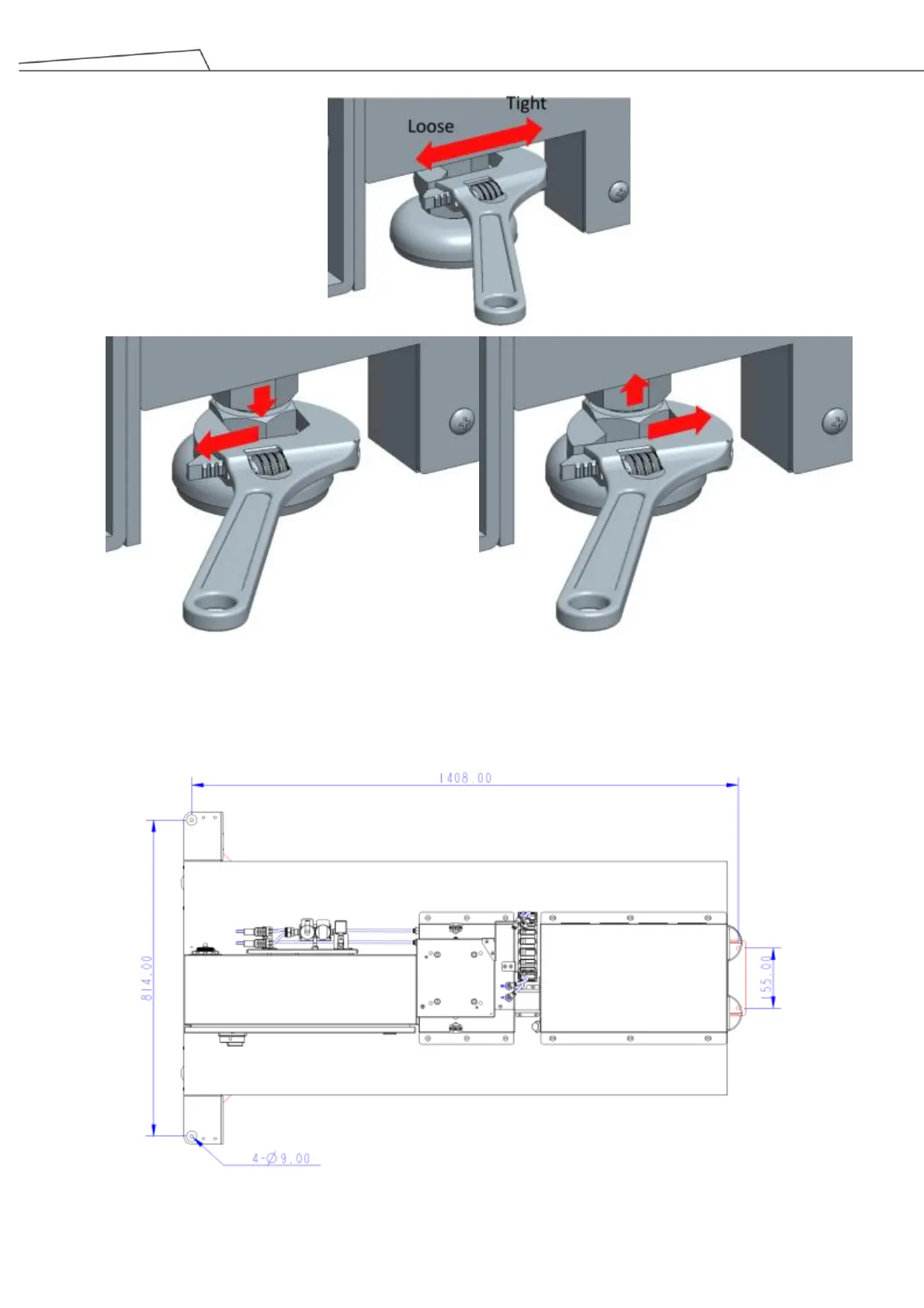

Figure 71: Using wrench to loosen/tighten leveling mounts

If the operator is not relocated frequently, it can be fixed to the floor using anchor points. The following

diagram provides a dimensional reference for anchor points.

Figure 72: TM Palletizing Operator anchor points
