TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 133

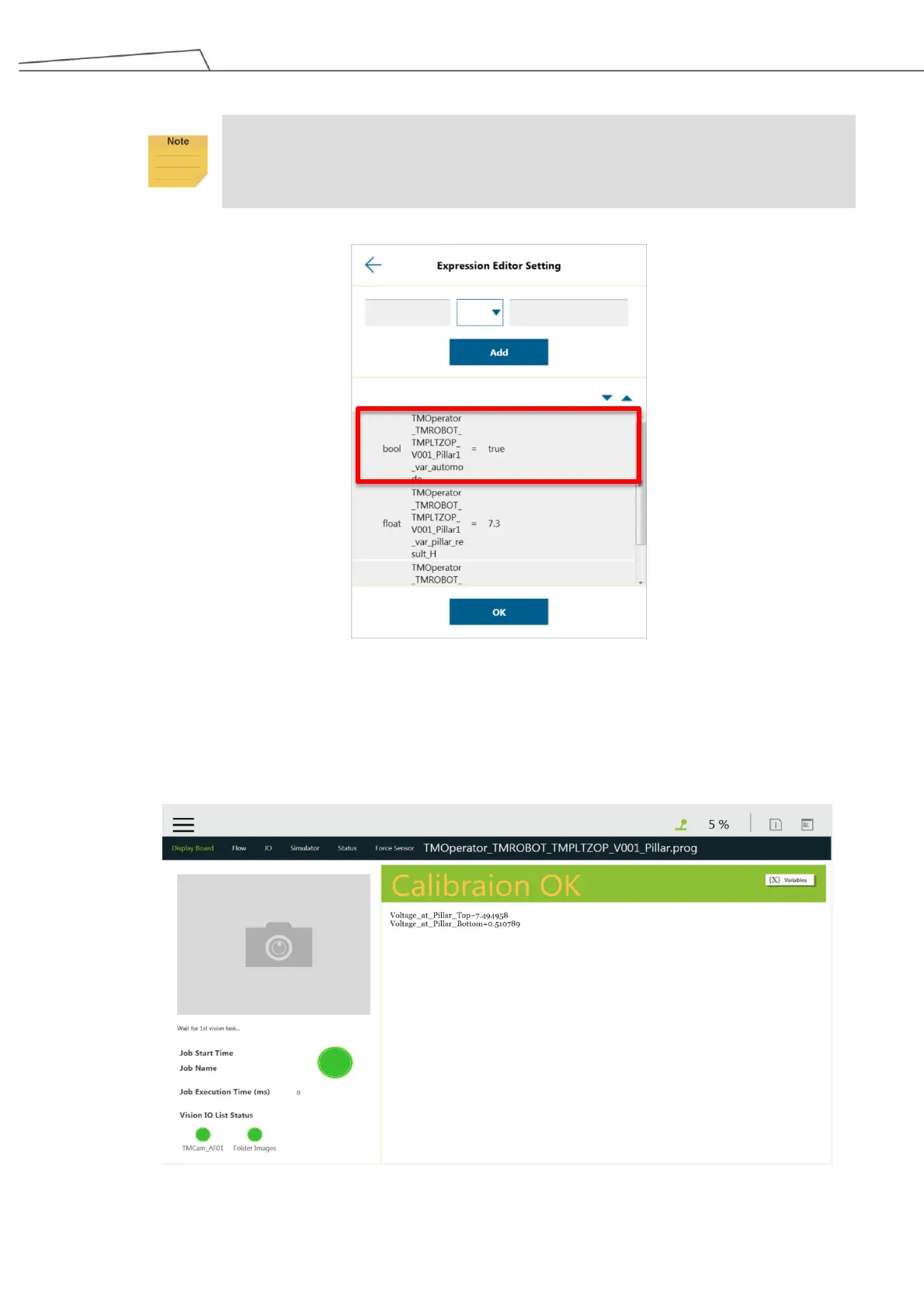

Make sure the “bool” value indicates “true”.

When “bool” value is set to be “true”, the pillar will perform automatic calibration and obtain

the relevant height/voltage values. However, if “bool” is set to be “false”, the pillar will

adjust itself based on user-input values in other variable setting.

Figure 121: “Bool” value must be true

4. Test the calibration. Press the “PLAY/PAUSE” button on the pendant to test-run pillar calibration. If the

testing is successful, the screen will show “Calibration OK” message with related voltage information.

Press “Stop” button if you wish to exit.

Figure 122: Calibration test
