7-34 Routine maintenance

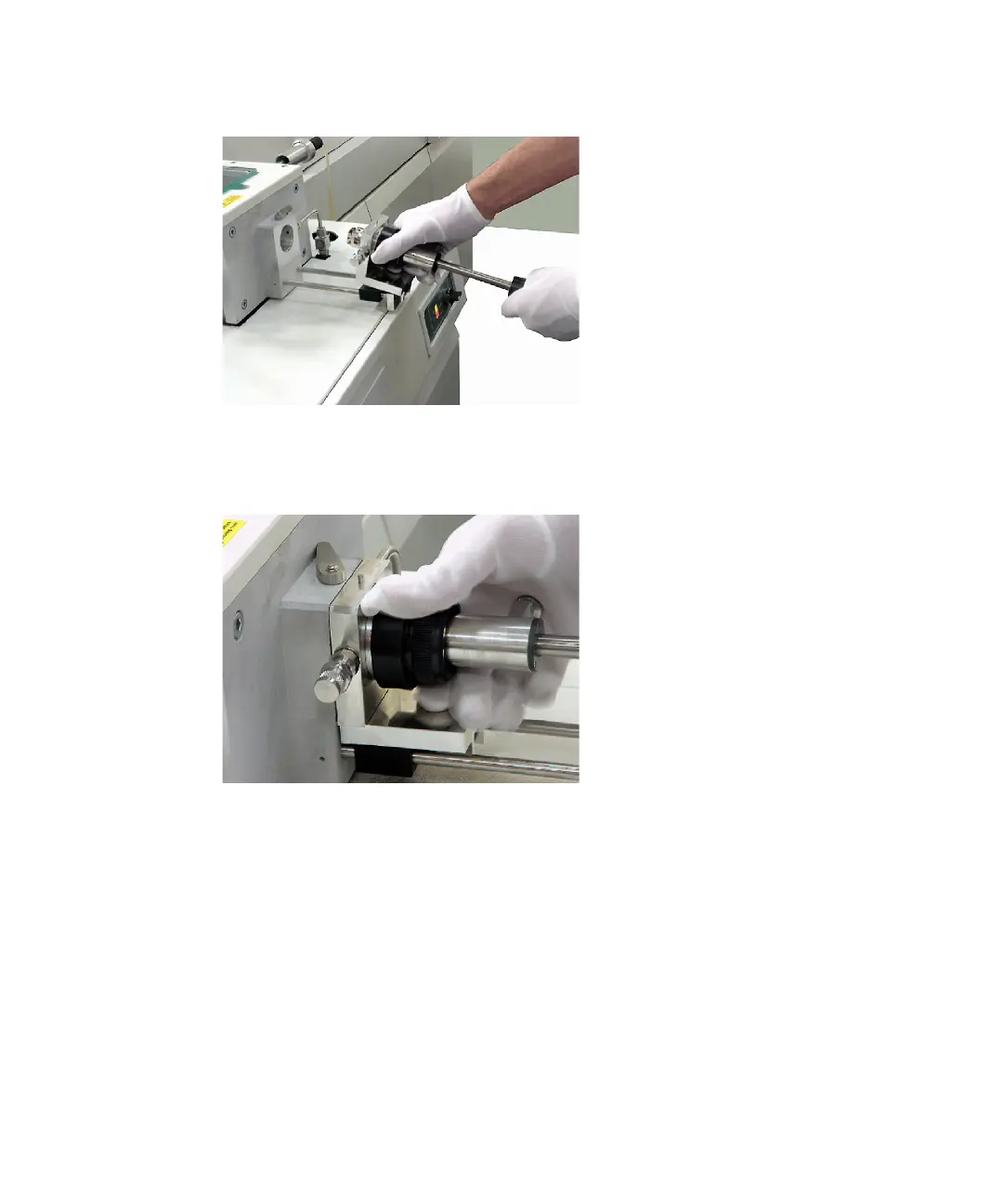

2. Tilt the lock slider assembly so that the chamber assembly is horizontal.

3. While holding the lock slider assembly and source handle, push the

source lock slider assembly forward until it butts against the outer

source housing.
