Waters Autospec Premier - Controls and Connections on the Front of the Instrument; A.C. Distribution Panel

1-6 Instrument description
• Acquiring data.
• Processing data.
See the MassLynx User’s Guide and MassLynx online Help for more
information.
Controls and connections on the front of the instrument

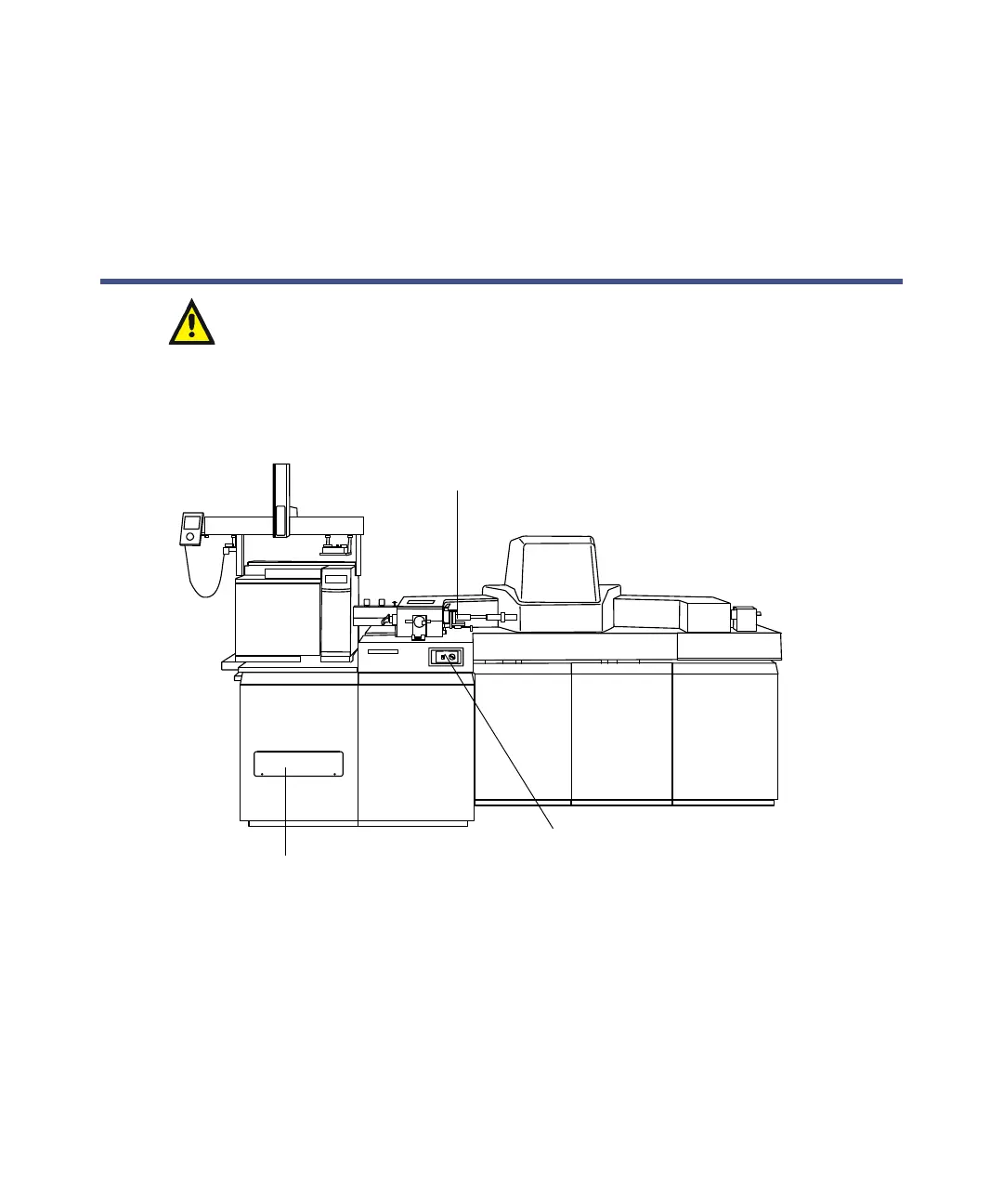

Front view of the instrument
A.C. distribution panel
Miniature circuit breakers (MCBs), which control and protect electrical
supplies to instrument modules, are mounted on the a.c. distribution panel,
located behind a hinged flap on the far, left-hand panel on the front of the
instrument. The table titled “Miniature circuit breakers” on page 1-7 details
the function of each MCB.
Warning: A pinch hazard exists at the front of the instrument. Do not
put your fingers between the air mount frame and top of the
instrument’s cubicles.
VACUUM
OPERATE
STANDBY
ISOLATE
OPERATE
Status switch panel
Probe cooling water connections and gas flow valves
A.C. distribution panel (behind hinged flap)
