Waters Autospec Premier - The Tune Window File Menu

To Next Page

To Previous Page

D-2 The MassLynx Tune window

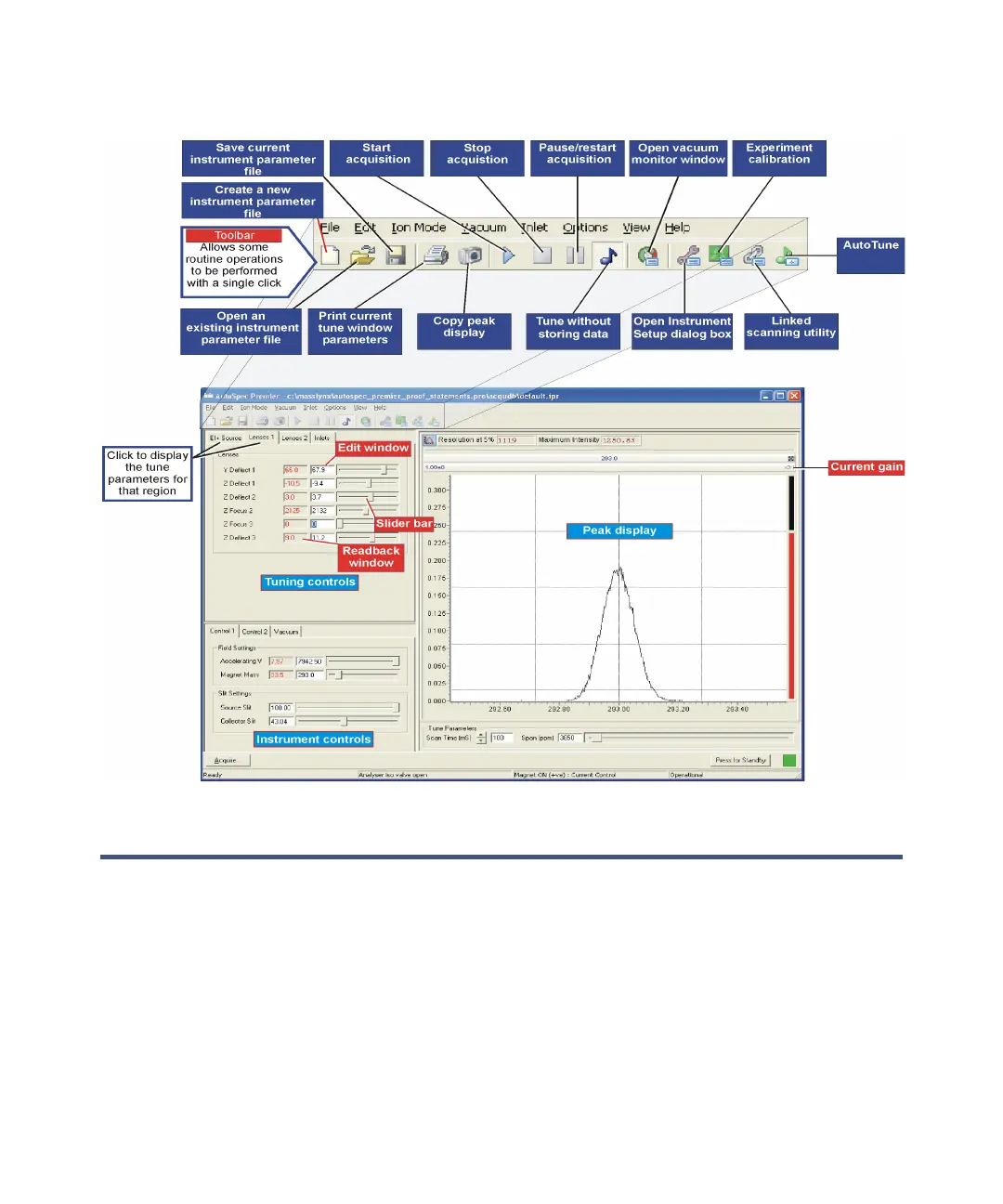

The MassLynx Tune window

The Tune window File menu

Use the File menu to perform the following tasks:

• Create a new instrument parameter file.

• Open an existing instrument parameter file.

• Save an instrument parameter file.

• Print a report of the current Tune window.
