The Tune window tuning controls D-33

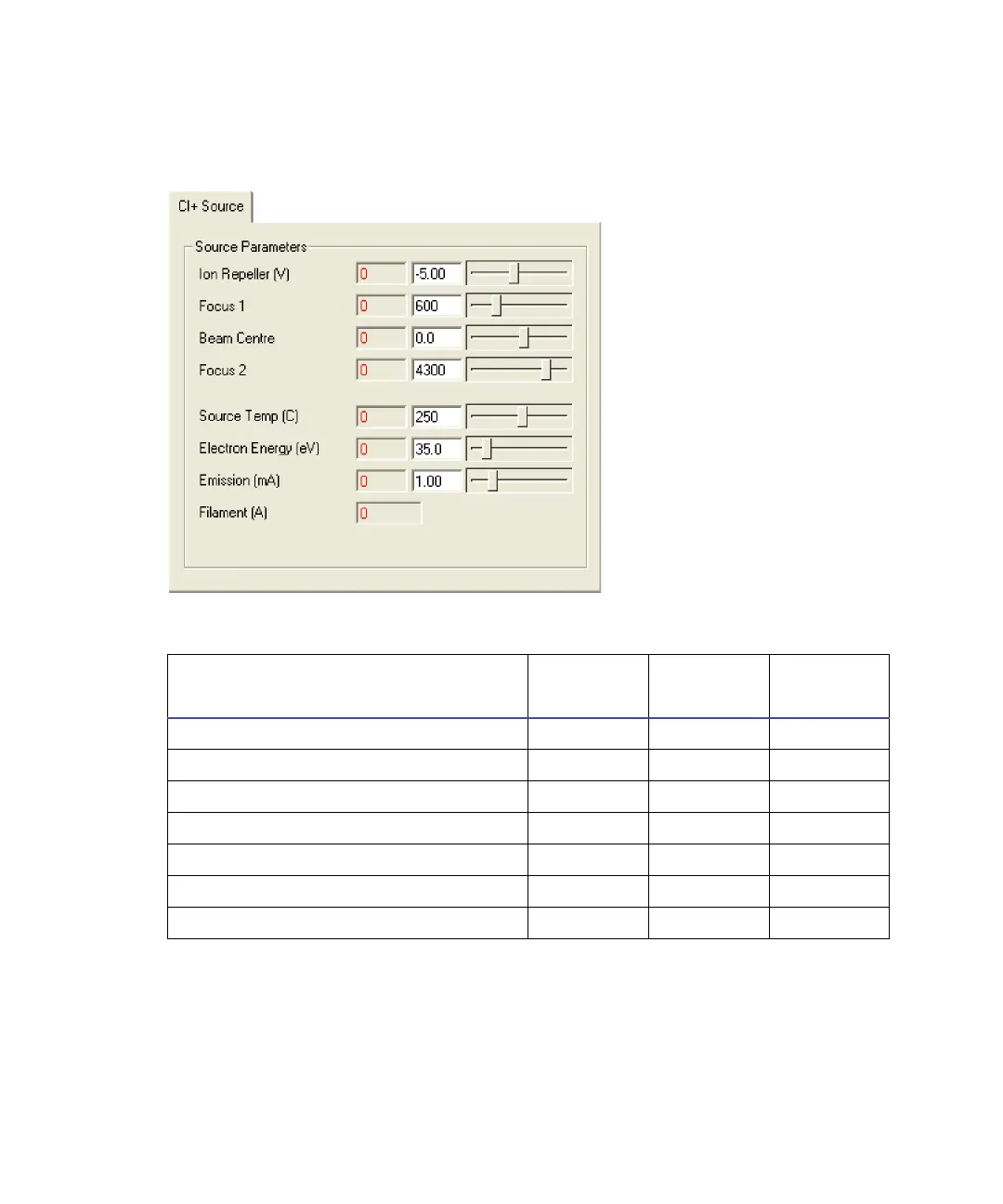

The CI Source tab parameters

CI Source tab

Note: Filament (A) is a readback only.

CI Source tab parameters :

Parameter

Minimum

Value

Maximum

Value

Default

Value

Ion Repeller (V) -25.00 25.00 -5.00

Focus 1 0 2500 600

Beam Centre -150.0 150.0 0.0

Focus 2 2500 5000 4300

Source Temp (C) 0 510 250

Electron Energy (eV) 0.0 255.0 35.0

Emission (mA) 0.00 5.00 1.00
