Waters Autospec Premier - Cooling Water Connections

1-12 Instrument description
Cooling water connections
Cooling water connections

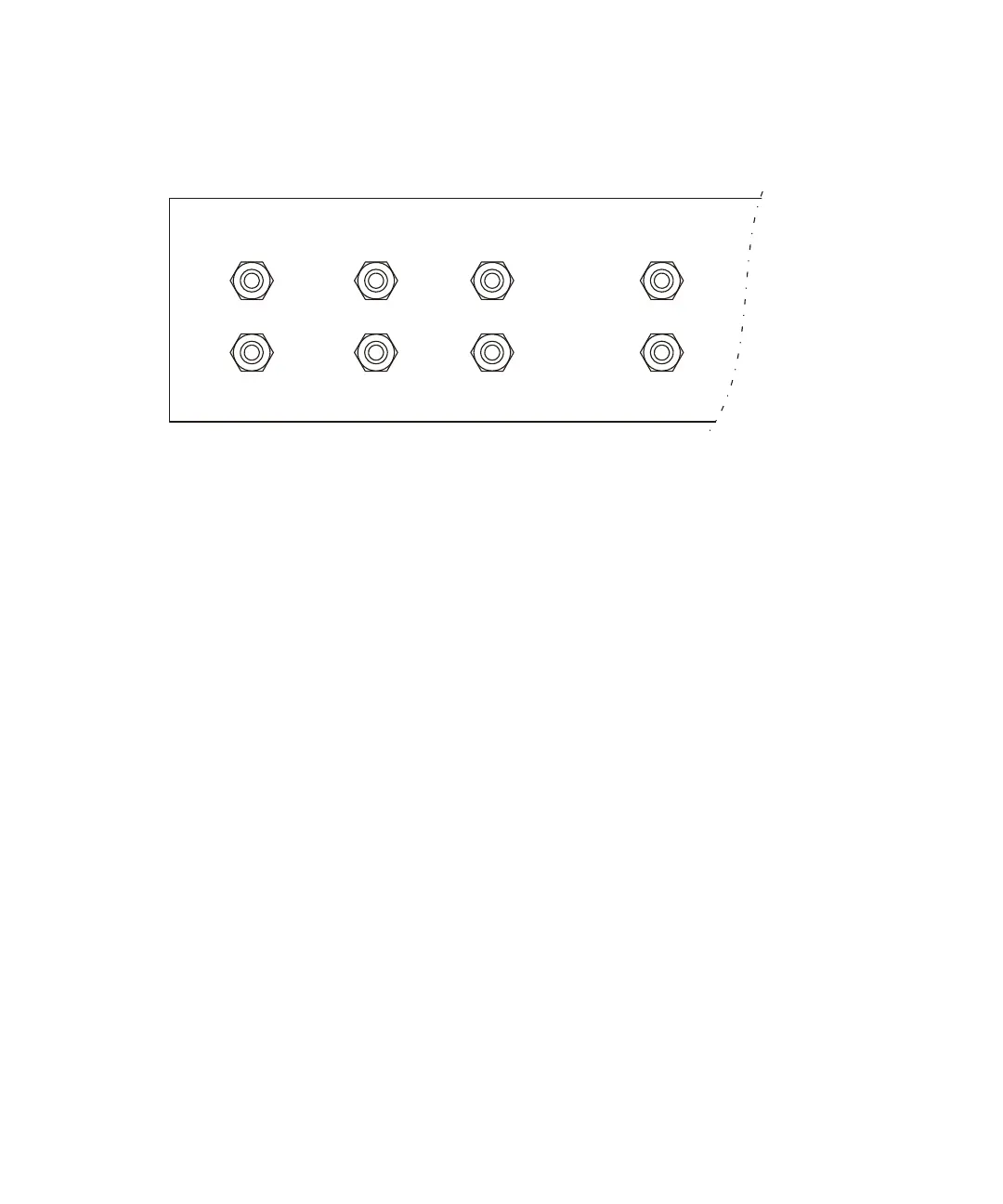

These cooling circuits have four cooling water inlet and four corresponding
outlet connections on the rear, left-hand panel of the instrument:
• Magnet current reference resistor
• Magnet power supply
• Magnet coils
• Diffusion pumps and probe cooling water connections
RESISTOR SLAVE
COILS
COOLING CIRCUIT
DIFFUSION PUMPMAGNET COOLING CIRCUIT
IN
IN
IN
OUT OUT OUT
