Controls and connections on the rear of the instrument 1-13

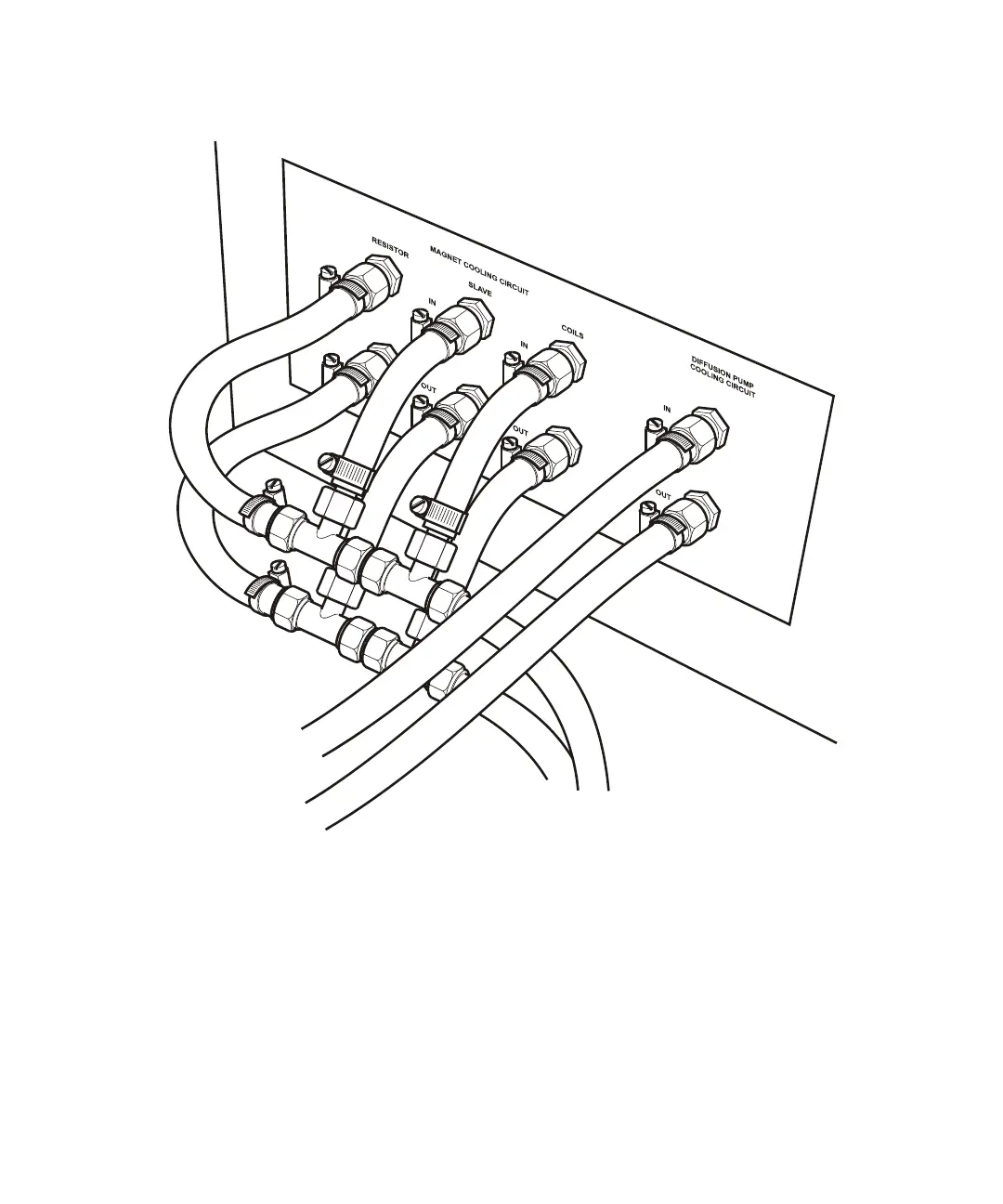

Cooling water connections showing typical hose connections
Note: This figure shows a typical configuration for the cooling water
connections, with two separate water supplies; the actual configuration may
differ on your instrument.
Magnet power connection
The magnet power connection is adjacent to the cooling water connections; it
connects the magnet power transformer output to the instrument.
