Waters Autospec Premier - The EI Source Tab Parameters

To Next Page

To Previous Page

D-32 The MassLynx Tune window

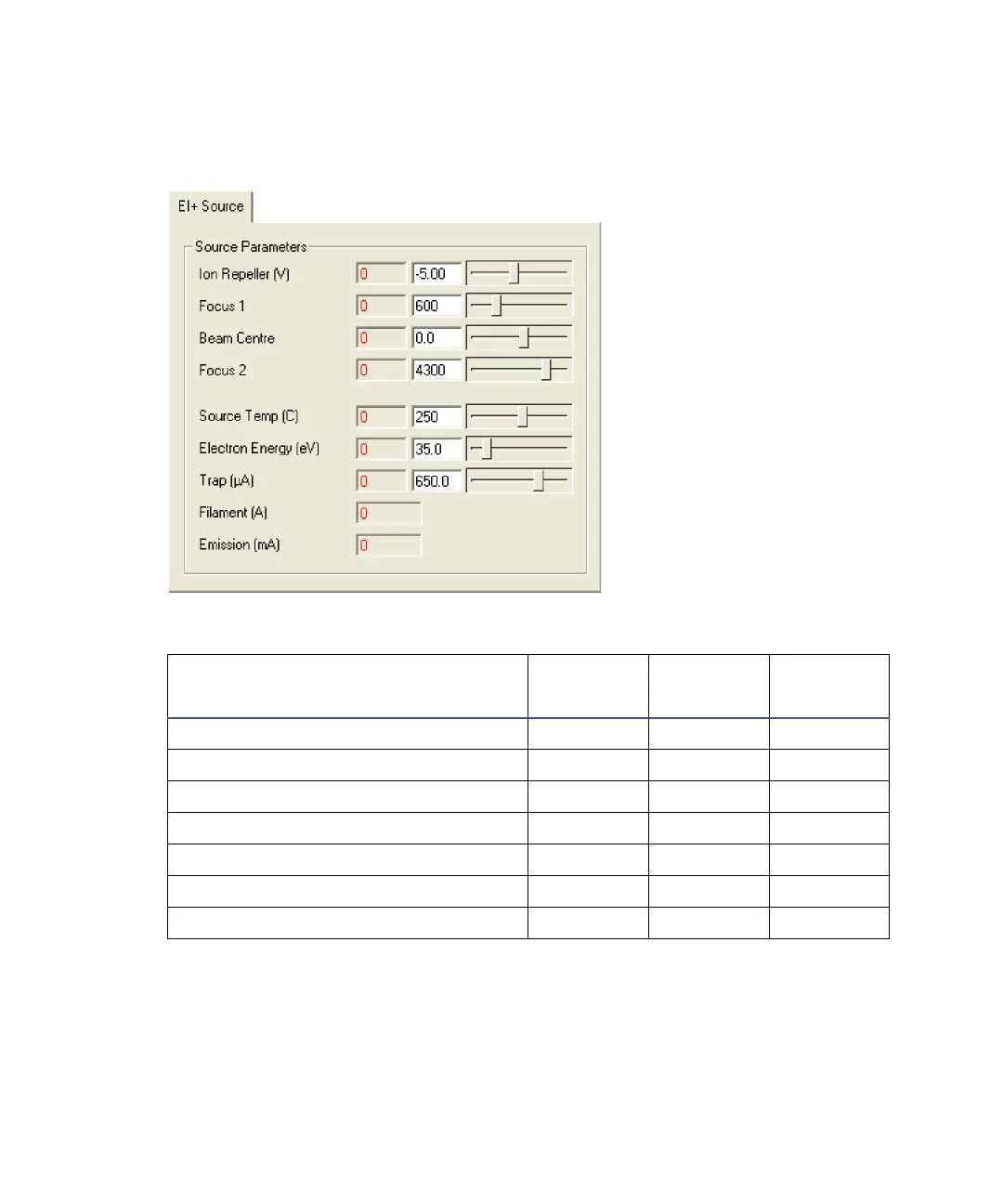

The EI Source tab parameters

EI Source tab

Note: Filament (A) and Emission (mA) are readbacks only.

EI Source tab parameters

Parameter

Minimum

Value

Maximum

Value

Default

Value

Ion Repeller (V) -25.00 25.00 -5.00

Focus 1 0 2500 600

Beam Centre -150.0 150.0 0.0

Focus 2 2500 5000 4300

Source Temp (C) 0 510 250

Electron Energy (eV) 0.0 255.0 35.0

Trap (µA) 0.0 1000.0 650.0
