Controls and connections on the front of the instrument 1-7

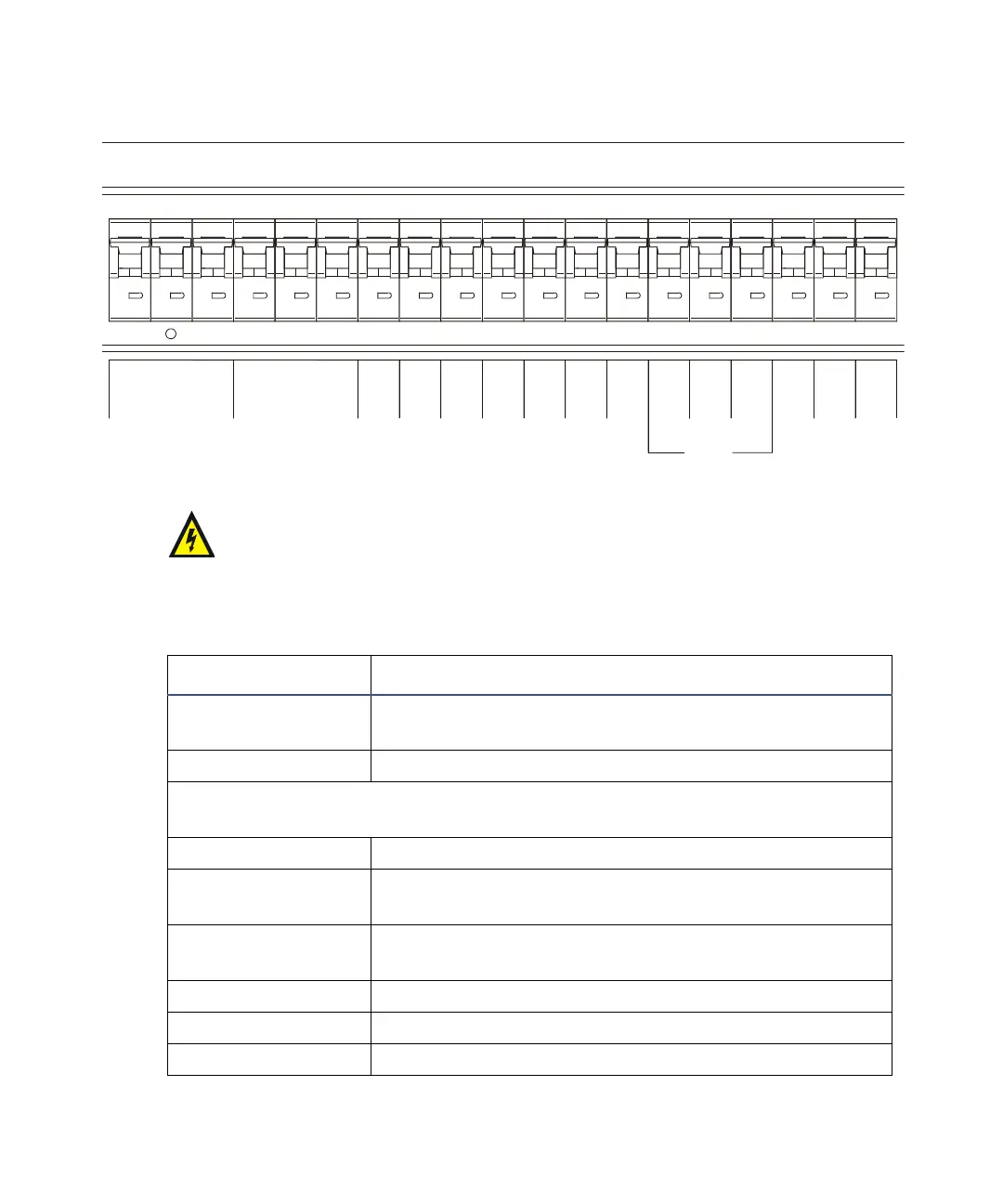

A.C. distribution panel
Warning: The system power MCBs do not isolate the instrument from
the main power supply. Isolate the instrument at the main power
supply source.
Miniature circuit breakers
MCB Supplies
System Power
(3-off)
Power to the whole system.
Magnet (3-off) The magnet power transformer.
Note: Each of the individual system power and Magnet MCBs isolates a
single-phase of the three-phase power supply.
Vacuum PCB The vacuum printed circuit board (PCB).
Data System The four-way main distribution panel located on the
data desk (supplied with the instrument).
Bench Electronics units that have main power applied when
the instrument is in Standby mode.
Outlets The a.c. power sockets on the instrument.
HPLC Not used.
GC The GC system.
MAGNET
SYSTEM
POWER
ROTARY
PUMPS
VACUUM PCB
DATA SYSTEM
BENCH
HPLC
OUTLETS
ANALYSER FINE
GC
INLETS 1
ANALYSER
SOURCE
BAKING
SOURCE FINE
HEATERS
