Source maintenance 7-57
To disassemble the probe contact assembly
1. For each contact, remove the screw and washer securing the connecting
lead to the contact.
2. Remove the connecting lead and washer from the screw.
3. Remove the two screws and associated washers securing each contact to
the probe contact mounting plate.
4. Remove the contacts and associated ceramic spacers from the probe
contact mounting plate.

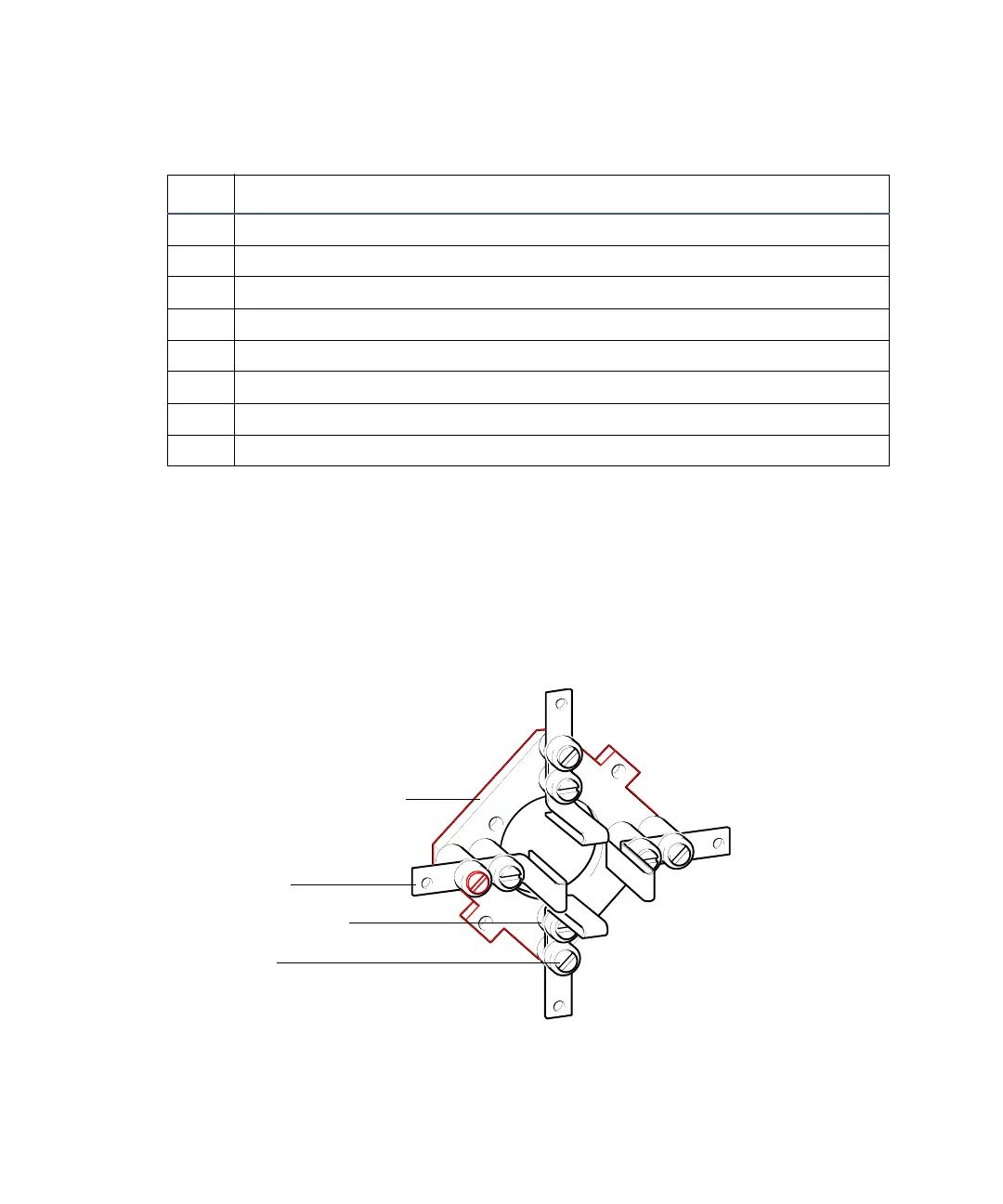

Key to probe contact assembly components
Item Description
A Probe contact mounting plate
B Contact
C 6-mm ceramic spacer
D 2-mm ceramic spacer
E Screw M1.6 × 6-mm
F Screw M1.6 × 10-mm
G 7.5-mm ceramic spacer
H 3.5-mm ceramic spacer
Probe contact mounting
plate
Contact
Ceramic spacer
Screw
