Source maintenance 7-75

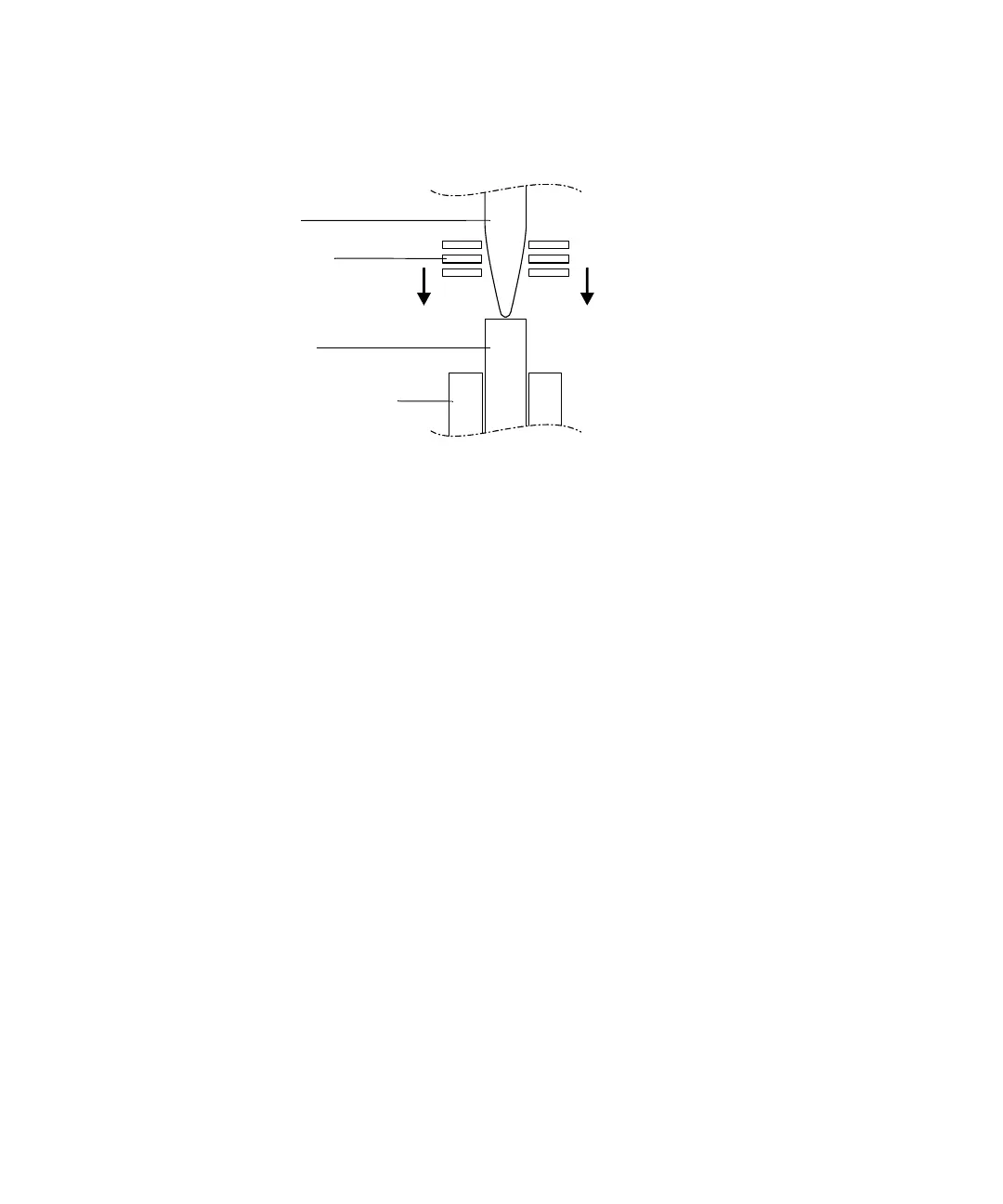

Tip: To fit the wavy washers to a ceramic rod, stack the washers onto a
leg of a pair of tweezers, then carefully feed the washers onto the
ceramic rod directly from the tweezers.
To fit the end plate
1. Fit the end plate to the outer source assembly.
2. Fit and finger-tighten two 5.5-mm nuts and washers, and 2 screws and
washers, securing the end plate to the contact rail assemblies and metal
pillars, respectively.
Tweezers
Wavy washers
Ceramic rod
10-mm ceramic spacer
