Xerox PHASER 6010 Service Manual

2-46 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation
Scanner

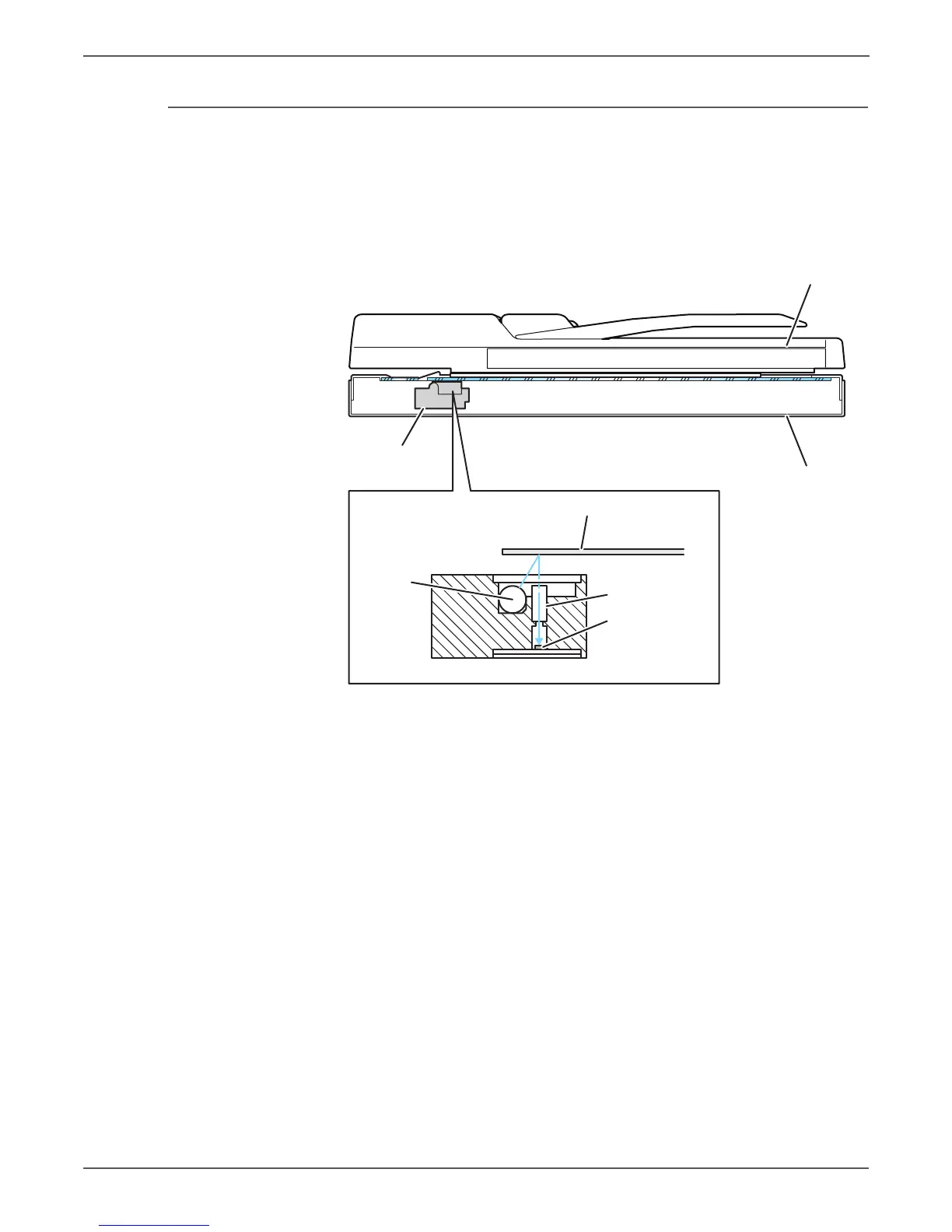

The Scanner Assembly consists of the Image Input Terminal (IIT), and in the
WorkCentre 6015N/NI Color MFP models, an Automatic Document Feeder (ADF).
Document scanning is performed by the carriage assembly in the IIT. The carriage
assembly consists of a CMOS image sensor for converting image to data, a LED
array for illuminating the original, and a rod scope for converting the original
image to a full-size image.
s6015-018
ADF
IIT
Carriage
Assembly
Document
LED Array
Rod Scope
CMOS
Image Sensor

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
