Xerox PHASER 6010 Service Manual

2-4 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation
Xerograhic Components

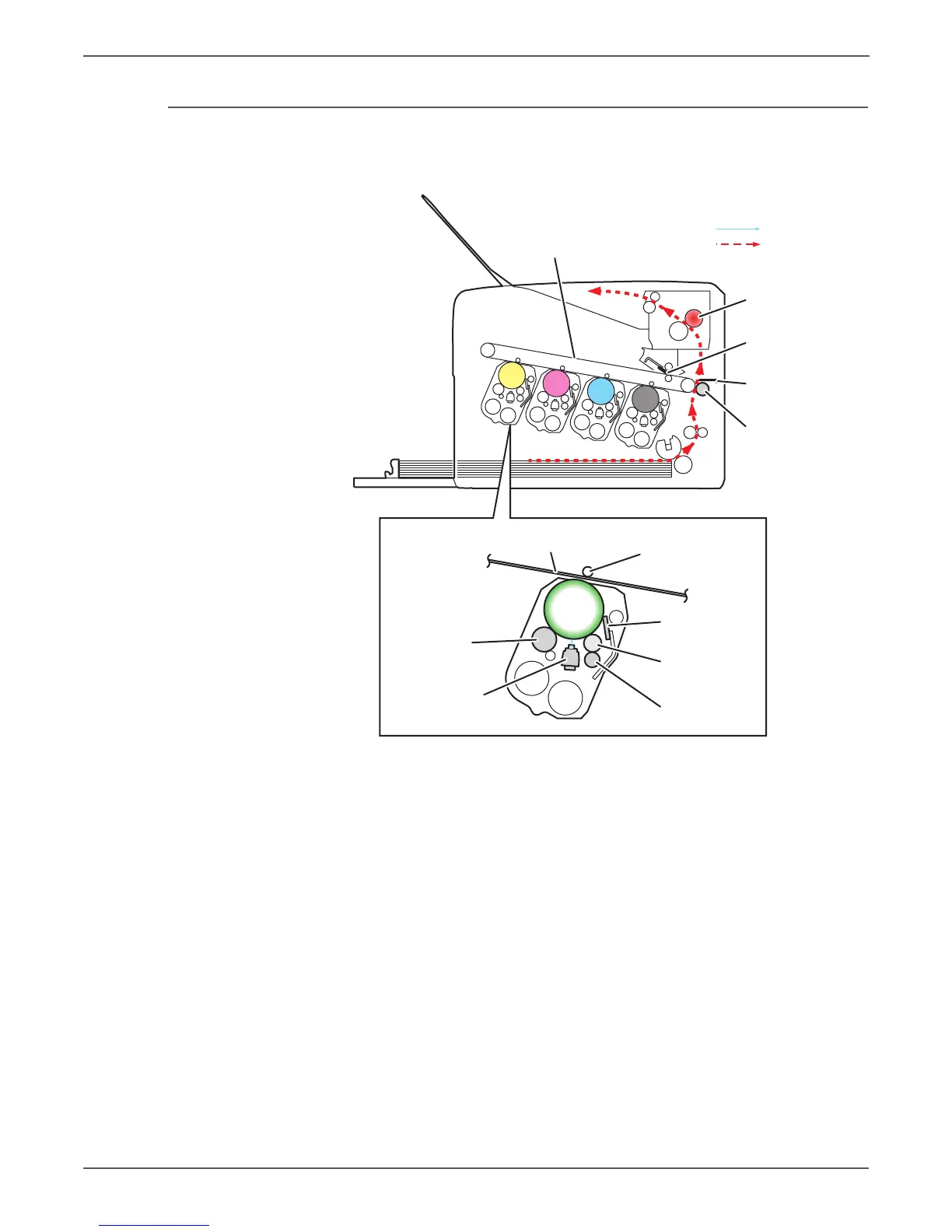

The location of the xerographic components and the media path are shown:
Y
M
C
K
: Paper Path
Eliminator
[(7) Neutralization]
Cleaning Blade
[(8) Cleaning]
Fuser
[(9) Fusing]
Transfer Roller
[(6) Secondary
Transfer]
: LED Lights
LED Print Head
[(2) Exposure]
Magnet Roller
[(3) Development]
1st BTR
[(4) Primary transfer]
Cleaning Blade
[(5) Cleaning]
Cleaning Roll
[(5) Cleaning]
Drum
Belt
BCR
[(1) Charging]
Transfer Belt
s6000-023

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
