Xerox PHASER 6010 Service Manual

4-50 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Troubleshooting

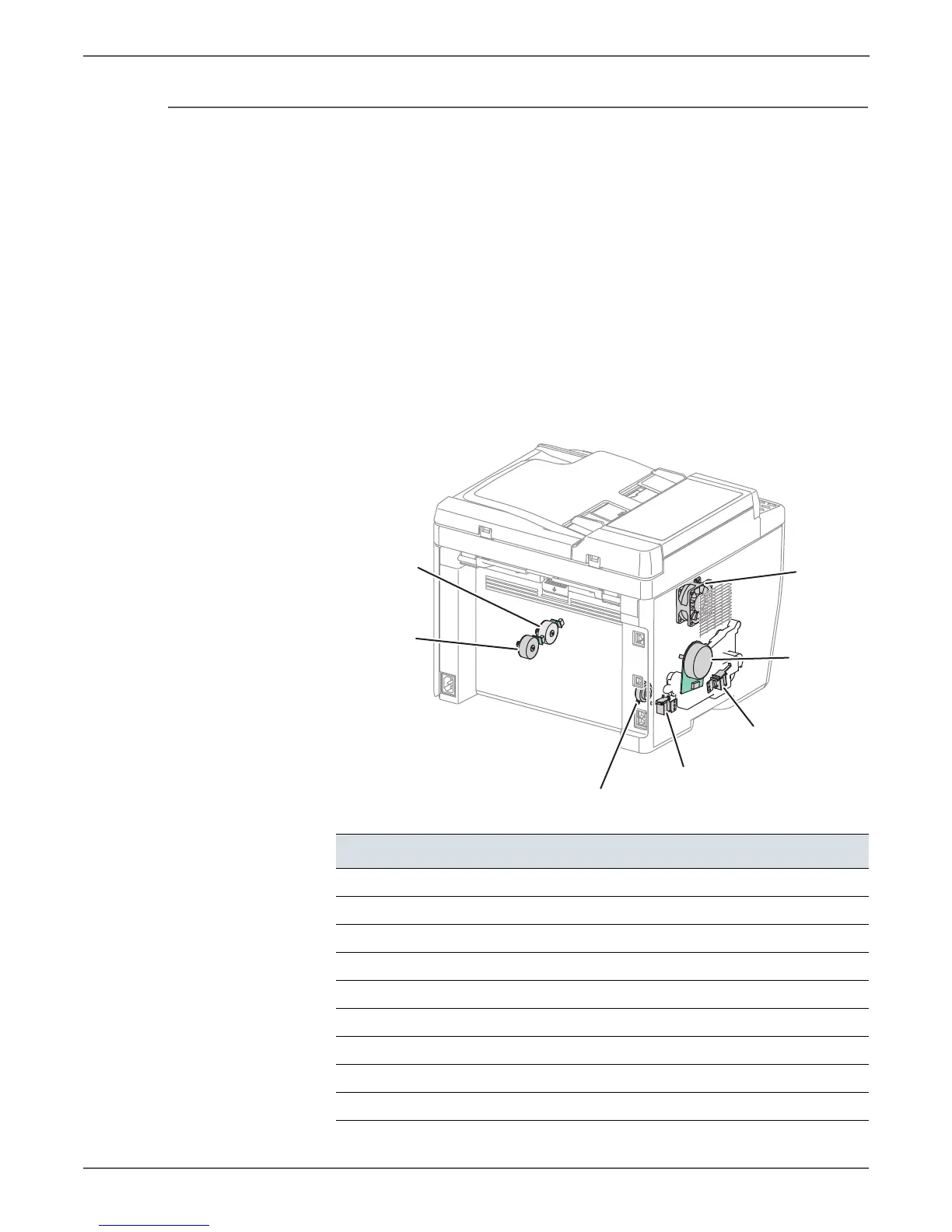

WorkCentre 6015 MFP Motor Test Procedures
These tests check whether the Digital Output (DO) components (motors, clutch,
and solenoids) operate. When the interlock switch is opened during a Motor Test,
the component stops.
When a paper jam or PQ problem occurs, or an error message or code is displayed,
these tests help to pinpoint the faulty part. Before executing the test, examine the
details of the jam, print quality problem, or error, and isolate the faulty parts.
These tests are available:
• Main Motor (Full, Half, Slow)
• Fan Motor (High, Low)
• Registration Clutch
•Feed Solenoid
•K Mode Solenoid
Code Component
DO-0 Main Motor (Full Rotation)
DO-1 Main Motor (Half Rotation)
DO-2 Main Motor (Slow Rotation)
DO-4 Fan Motor (Full Rotation)
DO-5 Fan Motor (Half Rotation)
DO-7 Regi Clutch
DO-9 Feed Solenoid
DO-b K Mode Solenoid
DO-10 Yellow Toner Motor
Yellow/Magenta
Toner Motor
Feed Solenoid
Registration Clutch
K Mode Solenoid
Main Motor
Fan
Cyan/Black
Toner Motor
s6015-049

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
