Theory of Operation

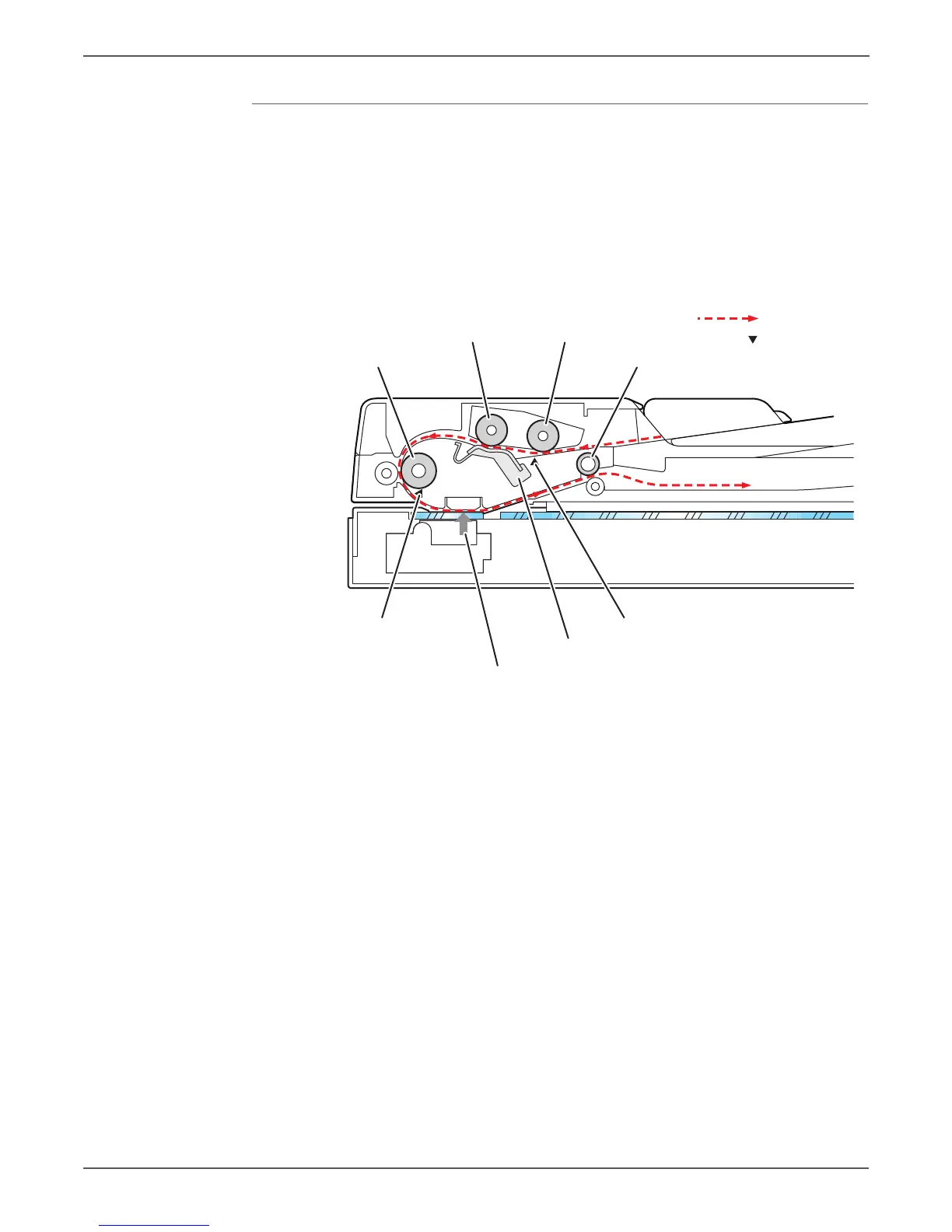

ADF Paper Path
Media in the document tray is conveyed through the feed roller and takeaway
roller. The sheet is nipped between the feed roller and the ADF Separator Pad while
feeding into the ADF.
Inside the ADF, the sheet is fed by the takeaway roller, rotating by torque from the
ADF motor. When the sheet reaches the Scanner Home Position in the carriage
assembly, it is scanned.
When the scan completes, the sheet is ejected to the output tray of the ADF by the
exit roller. The exit roller is driven by torque from the ADF Motor.
Exit Roller
Home Position (CVT Position)
Takeaway Roller
Nudger RollerFeed Roller
Feed Sensor Document Sensor
ADF Separator Pad
: Paper Transfer
: Paper Sensors
s6015-021
