Xerox PHASER 6010 - Toner Dispenser; Idler 34 Gear, Oneway Clutch Assembly, and Idler 23 Gear

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-73
Service Parts Disassembly
Toner Dispenser
Idler 34 Gear, Oneway Clutch Assembly, and Idler 23 Gear
PL4.1.6~7, PL 4.1.11
1. Remove the Main Paper Tray Cover (Phaser 6000/6010 page 8-7; WorkCentre
6015 MFP page 8-29).
2. Remove the Front Cover (Phaser 6000/6010 page 8-8; WorkCentre 6015 MFP
page 8-34).
3. Open the Rear Door.
4. Remove the Left Side Cover (Phaser 6000/6010 page 8-10; WorkCentre 6015
MFP page 8-29).
5. If present, remove the Wi-Fi Assembly (page 8-103).
6. Remove the Top Cover (Phaser 6000/6010 page 8-11; WorkCentre 6015 MFP
page 8-22).
7. Remove the Rear Cover (Phaser 6000/6010 page 8-15; WorkCentre 6015 MFP
page 8-24).
8. Remove the Toner Door (Phaser 6000/6010 page 8-19; WorkCentre 6015 MFP
page 8-27).
9. Remove the Toner Motors (page 8-75).
10. Release the Toner Motor harness from the harness guide.

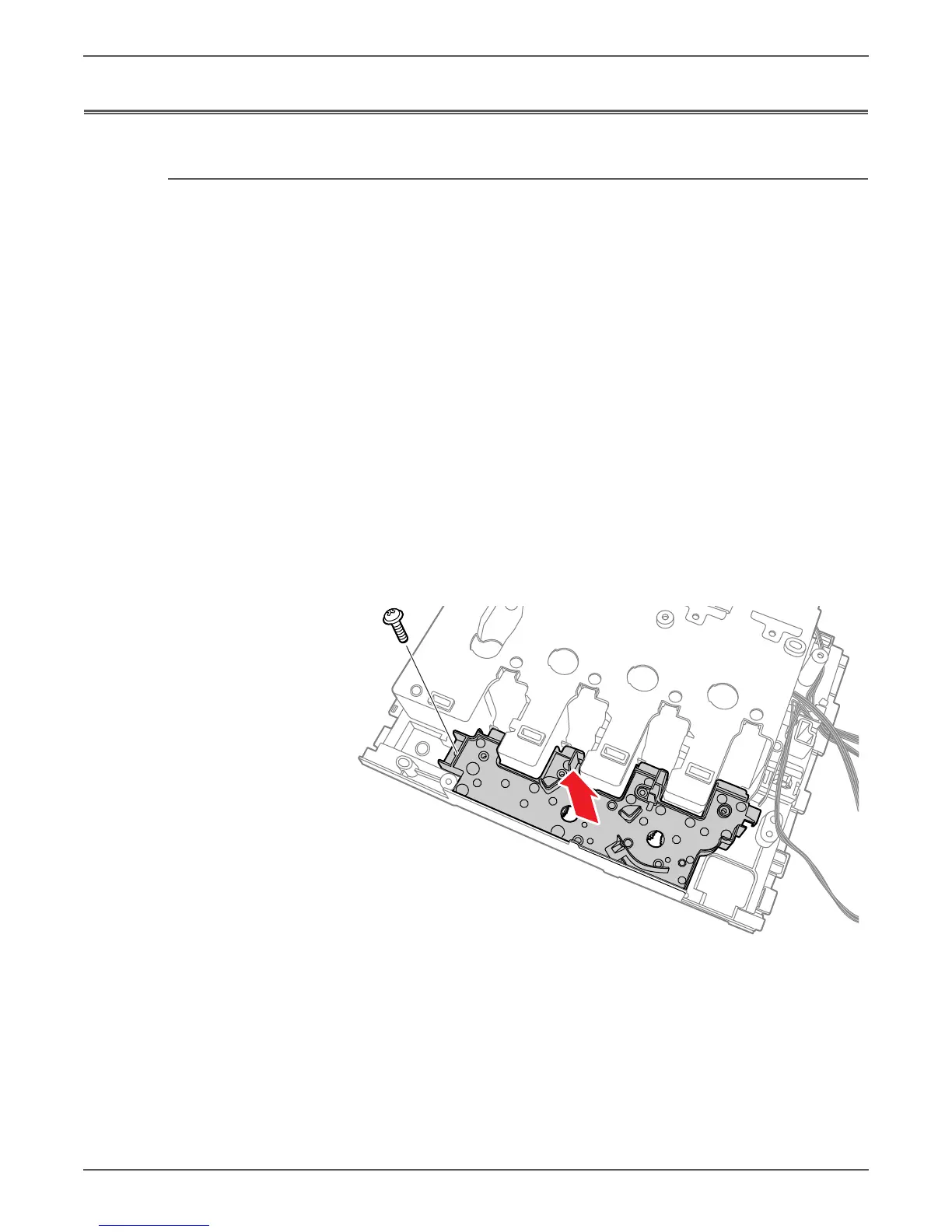

11. Remove the 1 screw (silver, tap, 8 mm).
s6000-113
