5-28 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Image Quality
Image Not Centered
The image is not centered on the page.
Initial Actions
• Verify that the paper guides are set correctly.
• If feeding from the Bypass Tray, try feeding from Main Paper Tray.
10 Replace the Feed Roller and the Left
and Right Feed Roller Cams
(page 8-45).
Does the image print correctly?
Complete. Go to step 11.
11 Replace the MCU Board
(page 8-121).
Does the image print correctly?
Complete. Contact your
designated
field support for
assistance.
Troubleshooting Reference Table

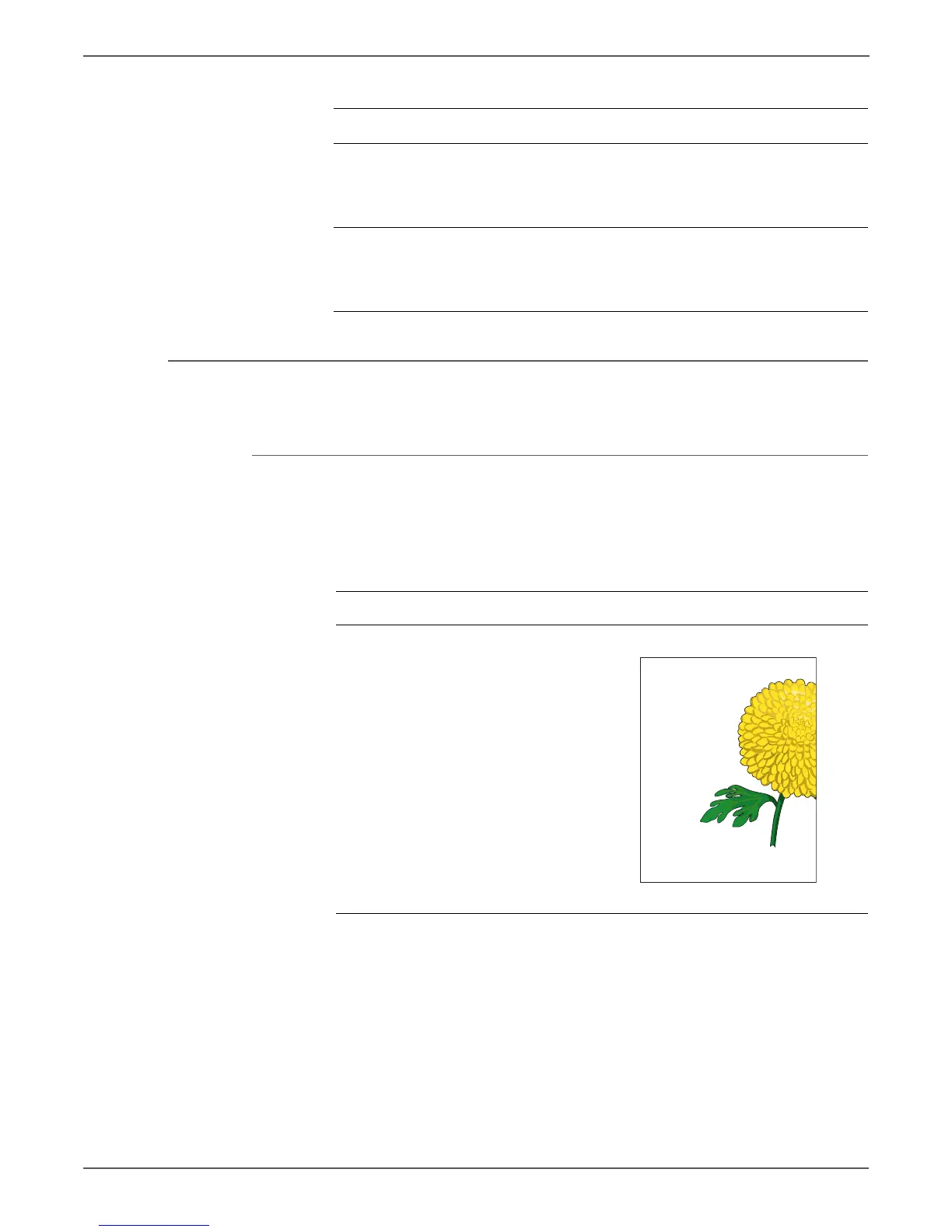

Applicable Parts Example Print
■ Feed Drive Assembly, PL6.1.5
■ Registration Roller, PL2.3.1
■ Registration Pinch Roller, PL2.3.2
■ Separator Pad, PL2.2.11
■ MCU Board, PL7.2.2
Troubleshooting Procedure Table (Continued)
Step Actions and Questions Yes No
Image Not Centered

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
