Image Quality
Parallelism
• Horizontal: 180 mm ± 1.3 mm
• Vertical: 280 mm ± 1.3 mm
Note
The most common reason for parallelism to be out of specification is because
the paper guides are set incorrectly.

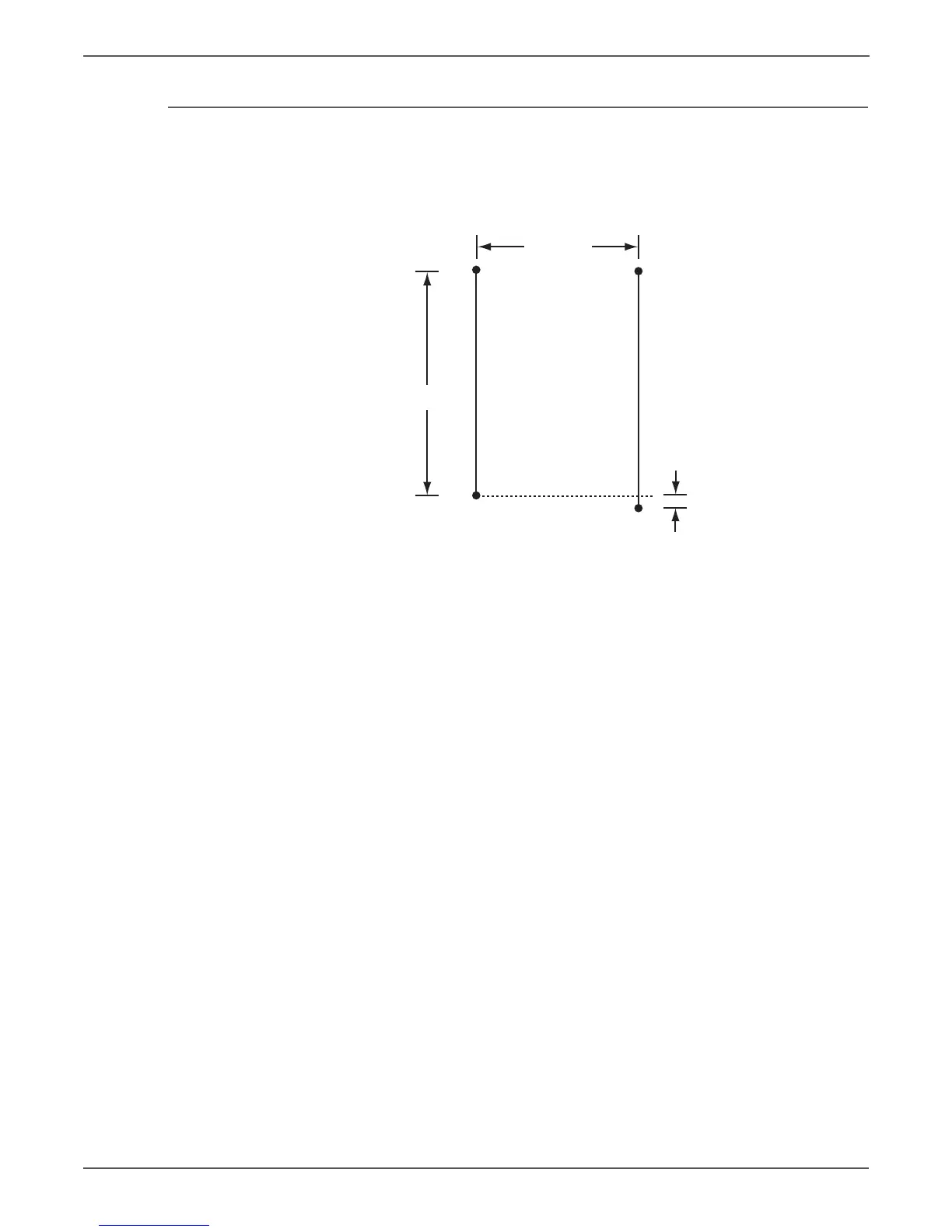

Parallelism
280 mm
180 mm
I
K
C
Parallelism
(within ±1.3 mm)
