8-118 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

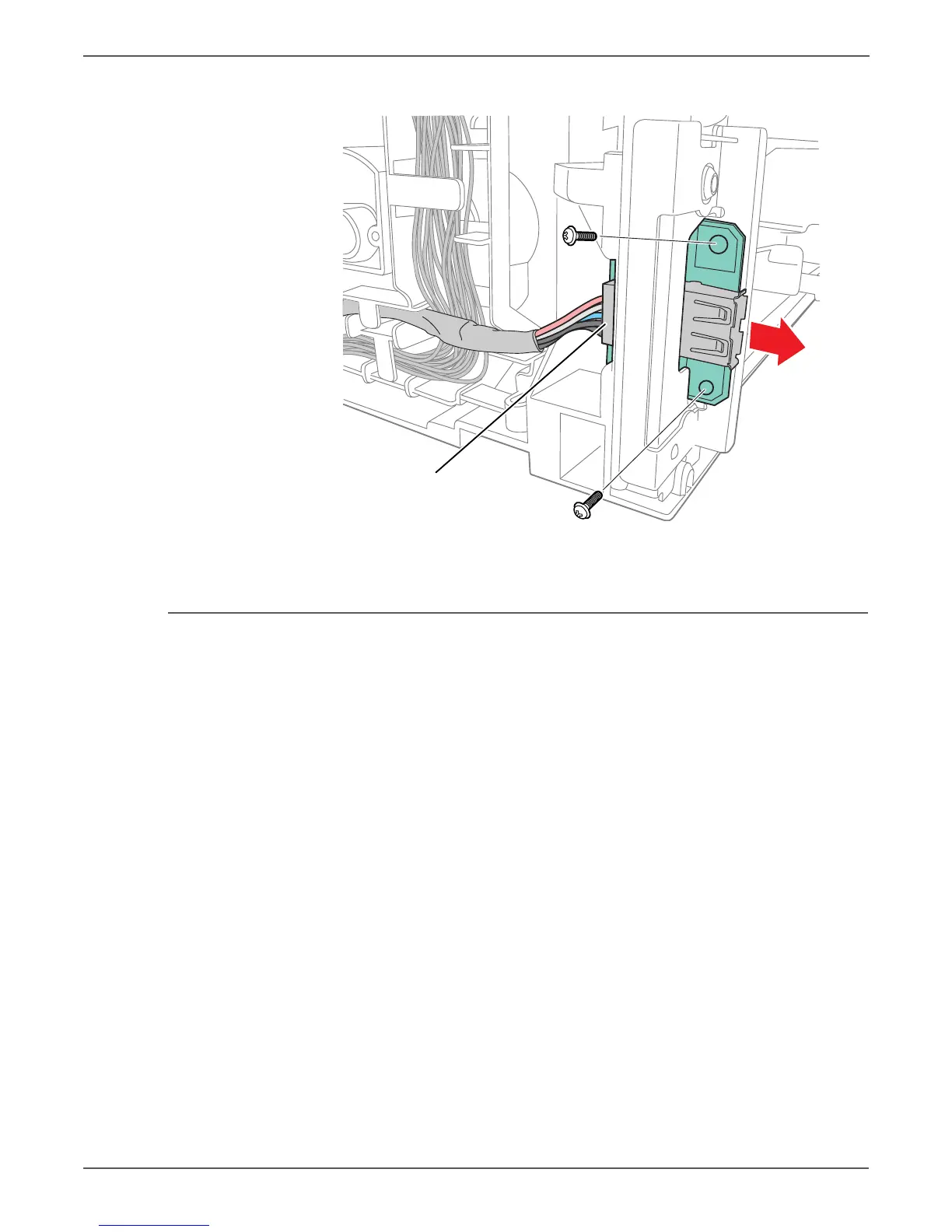

2. Disconnect P/J2 from the Front USB Board.
3. Remove 2 screws (silver, tap, 8 mm) and remove the Front USB Board from the
printer.
Fax Board
PL7.1.22
Note
This procedure applies to the WorkCentre 6015N/NI Color MFP.
1. Remove the Main Paper Tray Cover (page 8-29).
2. Open the Scanner Assembly.
3. Remove the Output Tray Extension (page 8-31).
4. Open the Toner Door.
5. Remove the Front Cover (page 8-34).
6. Remove the Left Side Cover (page 8-29).
P/J2
s6015-032
