Xerox PHASER 6010 Service Manual

4-20 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Troubleshooting
Phaser 6010N Sensor Test Procedures
Procedures for testing each IOT sensor using Service Diagnostics.
• No Paper Sensor
•K Mode Sensor
•Exit Sensor
• Registration Sensor
• Interlock Switch (Cover Open Sensor)
• Y, M, C, K CRUM
Note
Pressing the Cancel button stops the sensor tests. Press the Menu button to
get back to the Engine Diag menu.

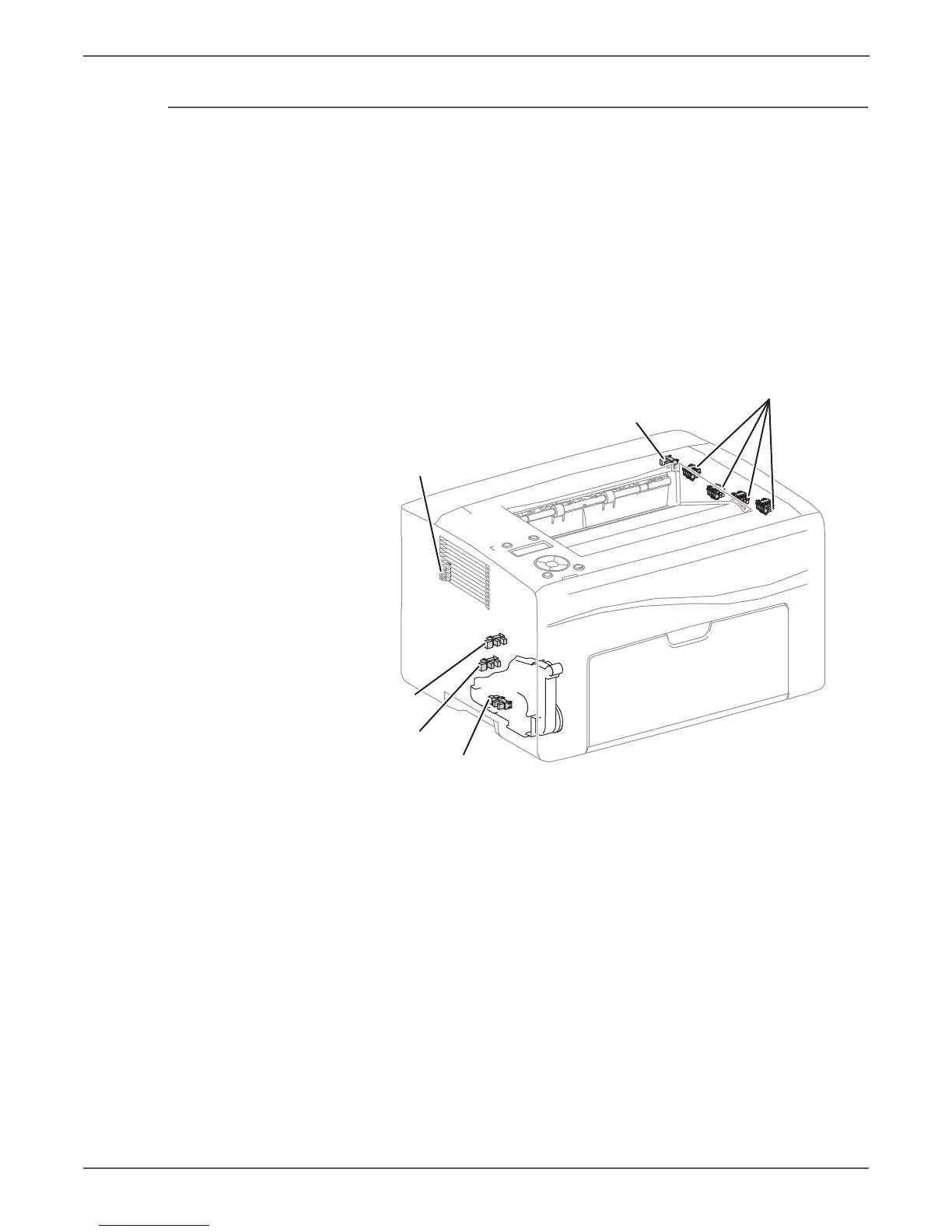

CRUM Sensors (K, C, M, Y)
Exit Sensor
Interlock Switch
(Cover Open Sensor)
Registration
Sensor
No Paper Sensor
K Mode Sensor
s6000-140
