Xerox PHASER 6010 Service Manual

2-16 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation

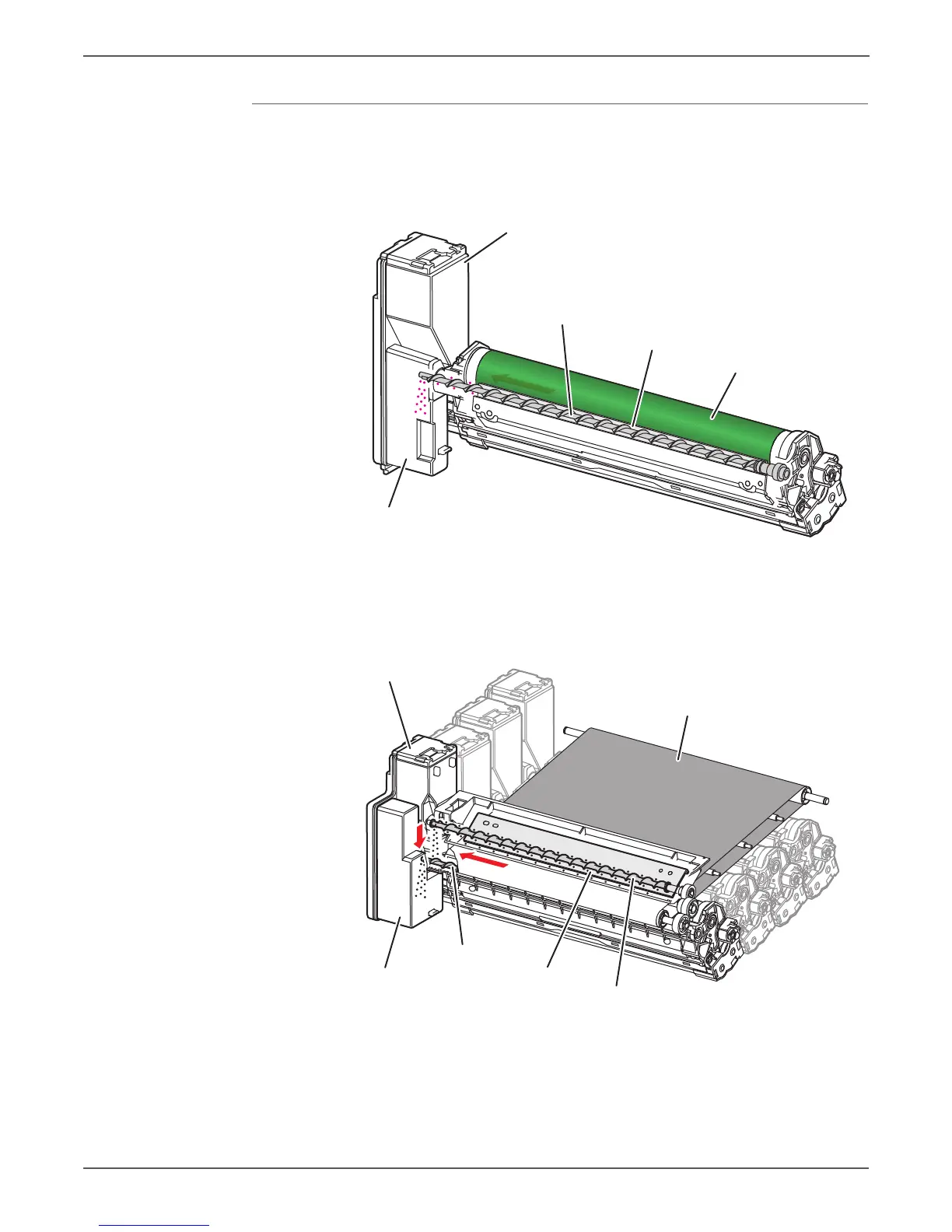

Waste Toner Collection
The waste toner collected in the cleaning process of each drum and the degraded
developer ejected from each imaging unit are transported to the waste toner
bottle in each Toner Cartridge via the auger in each imaging unit.
The waste toner collected in the cleaning process of the transfer belt is transported
by auger to the Black imaging unit through the duct. The waste toner is then
transported to the waste toner bottle in the Black Toner Cartridge via the auger in
the Black imaging unit.
Drum Cleaning Blade
Drum Cleaning Auger
Waste Toner Bottle
Toner Cartridge
Drum
s6000-077
Belt Cleaning Blade
Belt Cleaning Auger
Transfer Belt
Waste Toner Bottle (K)
Toner Cartridge (K)
Drum Cleaning Auger (K)
s6000-078

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
