Xerox PHASER 6010 - Workcentre 6015 MFP Left and Right Scanner Arms

8-32 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

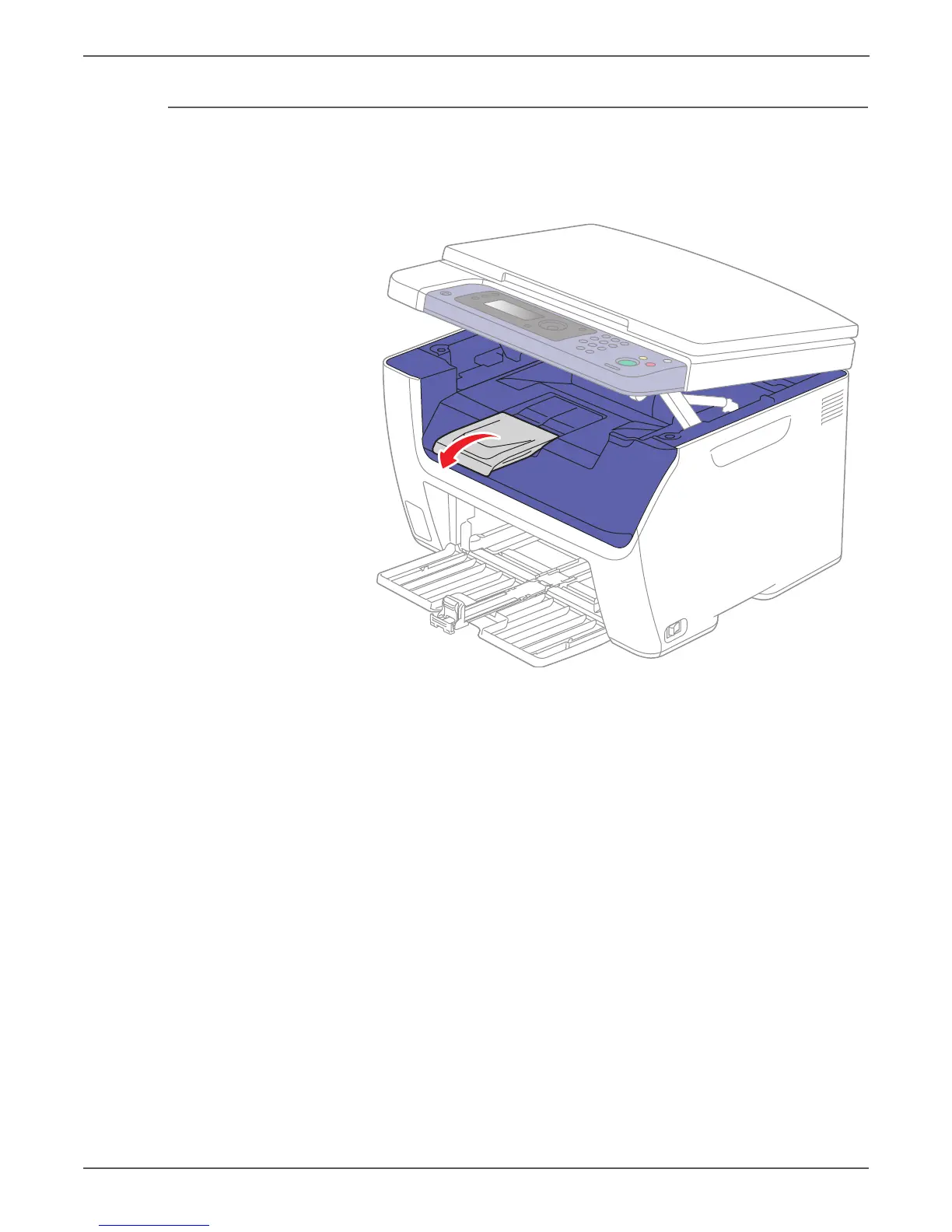

WorkCentre 6015 MFP Left and Right Scanner Arms
PL 1.1.33 and PL1.1.34
1. Remove the Main Paper Tray Cover (page 8-29).
2. Remove the Output Tray Extension (page 8-31).
3. Open the Toner Door.
4. Remove the Front Cover (page 8-34).
5. Remove the Left Side Cover (page 8-29).
s6015-070
