4-26 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Troubleshooting
Phaser 6010N Motor Test Procedures
These tests check whether the Digital Output (DO) components (Motor, Clutch and
Solenoid) operate. When the interlock is opened during a Motor Test the
component stops.
When a paper jam or PQ problem occurs, or an error message or code is displayed,
these tests help to pinpoint the faulty part. Before executing the test, examine the
details of the jam, PQ problem, or error, and isolate the faulty parts. The following
tests are available:
• Main Motor (Full, Half, Slow)
• Fan Motor (High, Low)
• Registration Clutch
•Feed Solenoid
•K Mode Solenoid

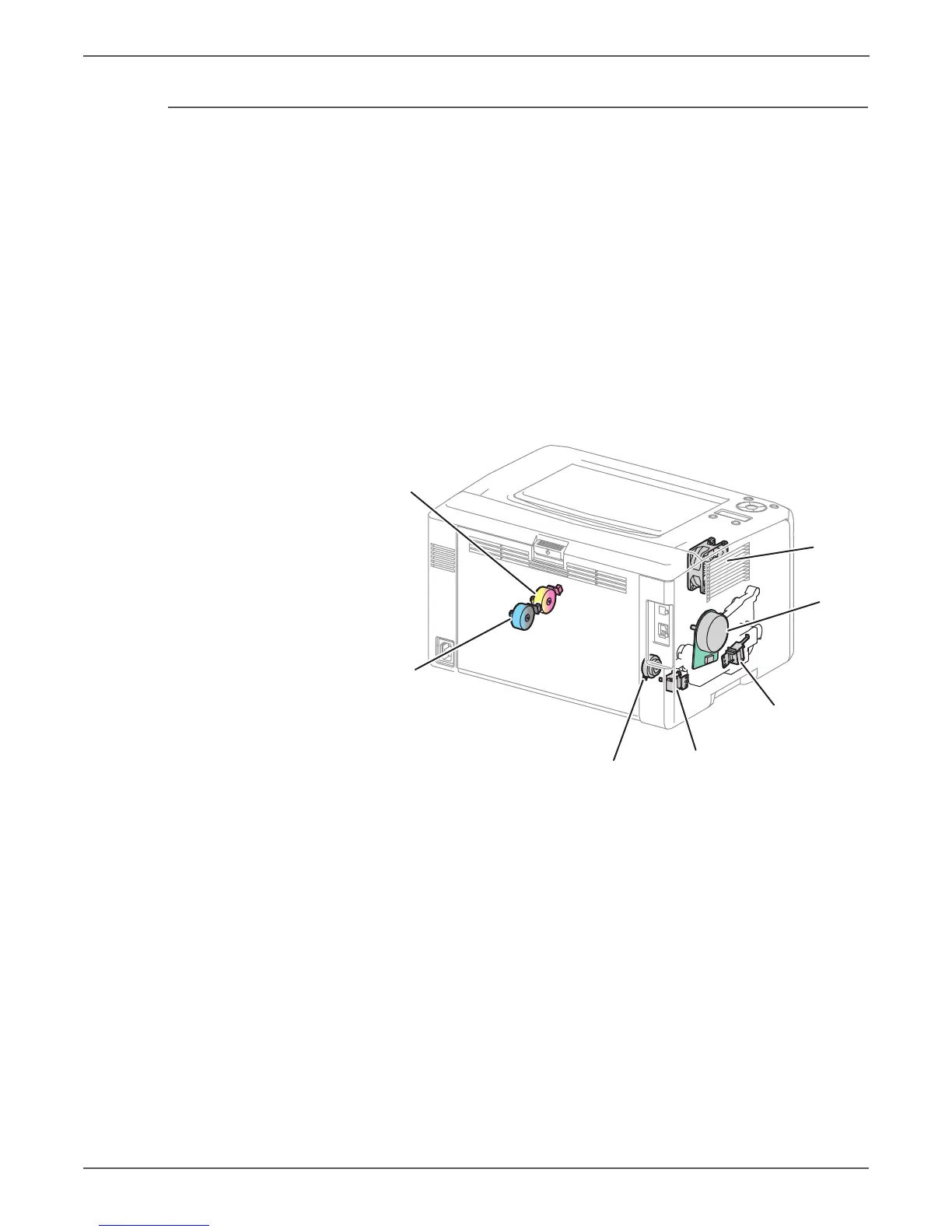

s6000-003
Yellow/Magenta
Toner Motor
Feed Solenoid
Regi Clutch
K Mode Solenoid
Main
Motor
Fan
Cyan/Black
Toner Motor
