Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-35
Service Parts Disassembly
IIT Procedures
WorkCentre 6015 MFP Scanner Assembly
PL8.1.1/PL9.1.1
Note
This procedures applies to the WorkCentre 6015 MFP.
1. Remove the Main Paper Tray Cover (page 8-29).
2. Remove the Output Tray Extension (page 8-31).
3. Open the Toner Door.
4. Remove the Front Cover (page 8-34).
5. Remove the Left Side Cover (page 8-29).

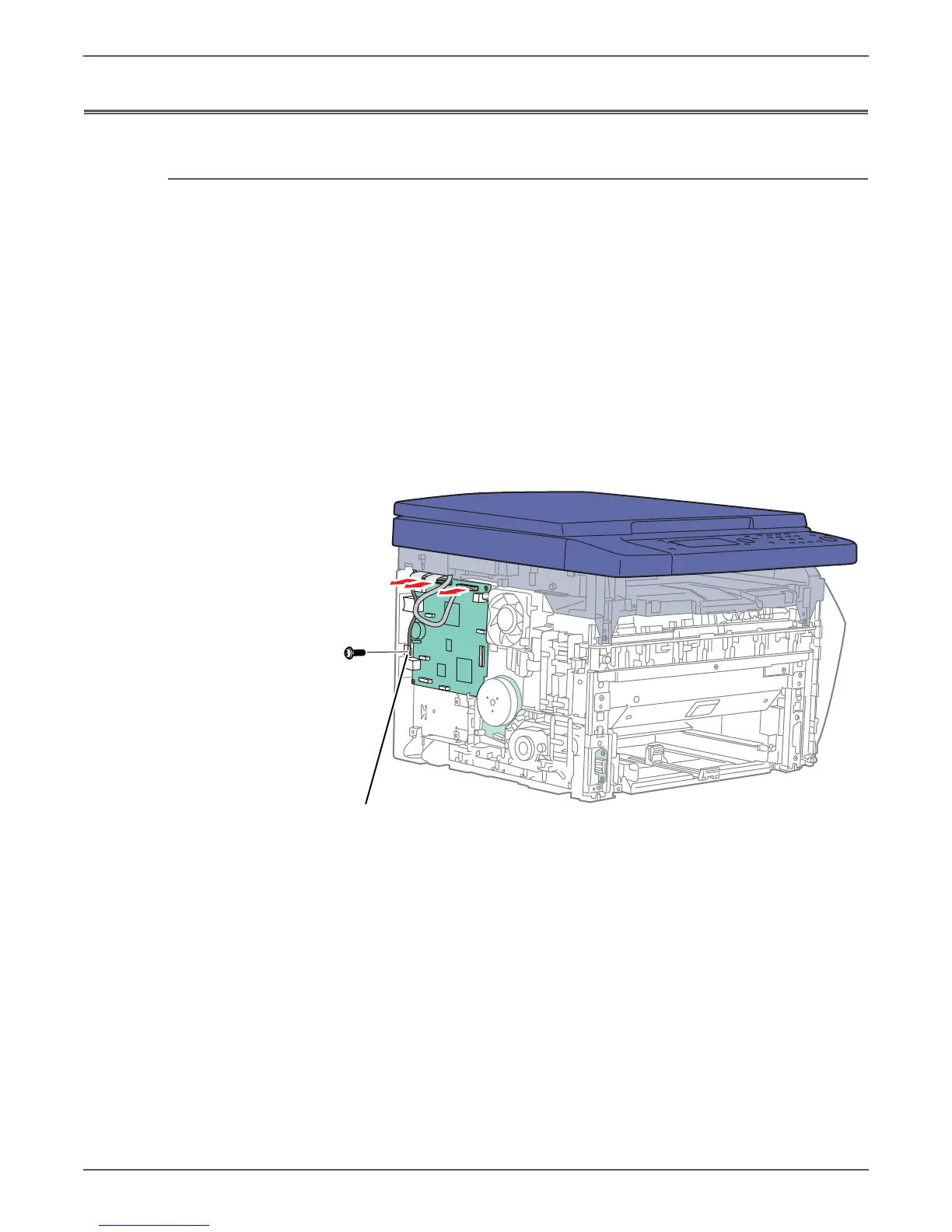

6. Disconnect P/J1, P/J6, and P/J16 on the IP Board. If the printer has an ADF,
remove 1 screw (silver, M3, 6 mm) to disconnect the ADF ground wire from the
chassis.
s6015-051
Grounding Wire and screw: ADF Only

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
