2-28 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation
Paper Feeder
Major Functions
•Feed Solenoid
Transmits the torque from the Main Drive Assembly to the Feed Roller. See
“Main Drive Assembly” on page 2-68.
• Feed Roller
When the Feed Solenoid operates, the Feed Roller starts rotating to feed the
print medium. See “Main Drive Assembly” on page 2-68.

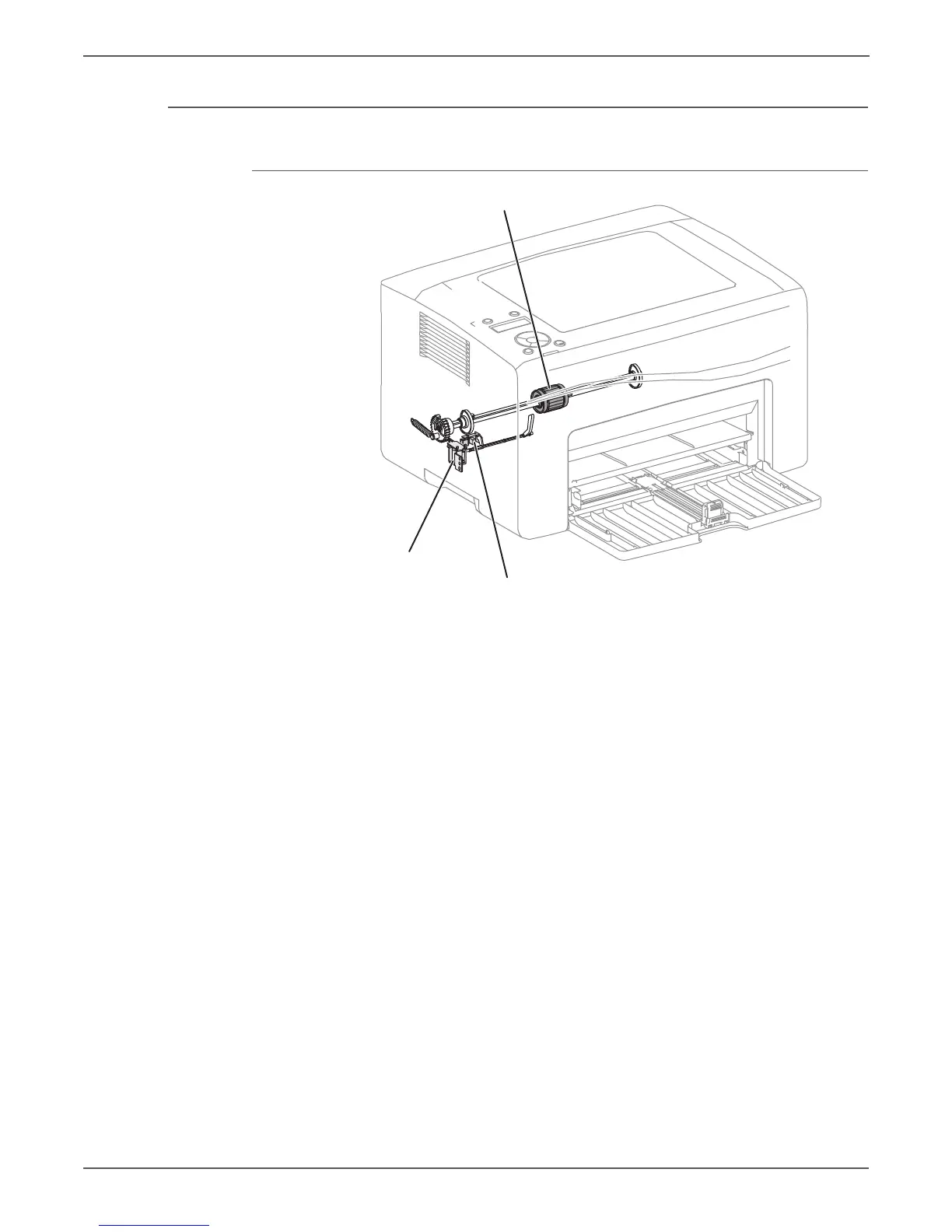

Feed Roller
Feed Solenoid
No Paper Sensor
s6000-174
To Next Page
