1-4 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
General Information

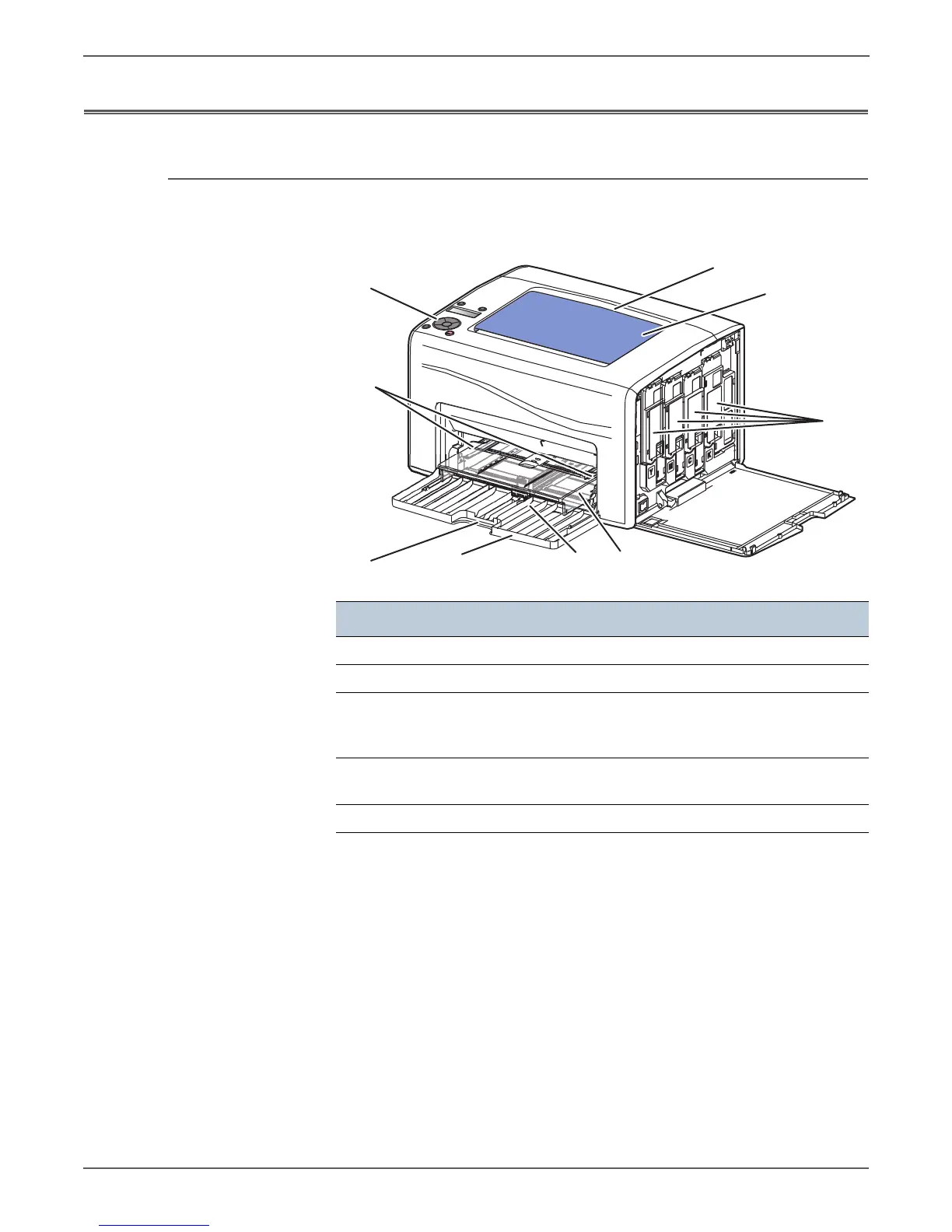

Parts of the Printer
Front and Side View
Phaser 6000/6010
Item Description Item Description
1Output Tray 6Front Cover
2 Output Tray Extension 7 Front Cover Handle
3 Toner Cartridges 8 Bypass Tray Feeder Guides
(6010N and WorkCentre 6015
MFP only)
4 Bypass Tray (6010N an
WorkCentre 6015 MFP only)
9 Control Panel
5 Main Paper Tray
s6000-171
1
4
2
3
9
7
5
6
8
