Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 5-51
Image Quality
Skew

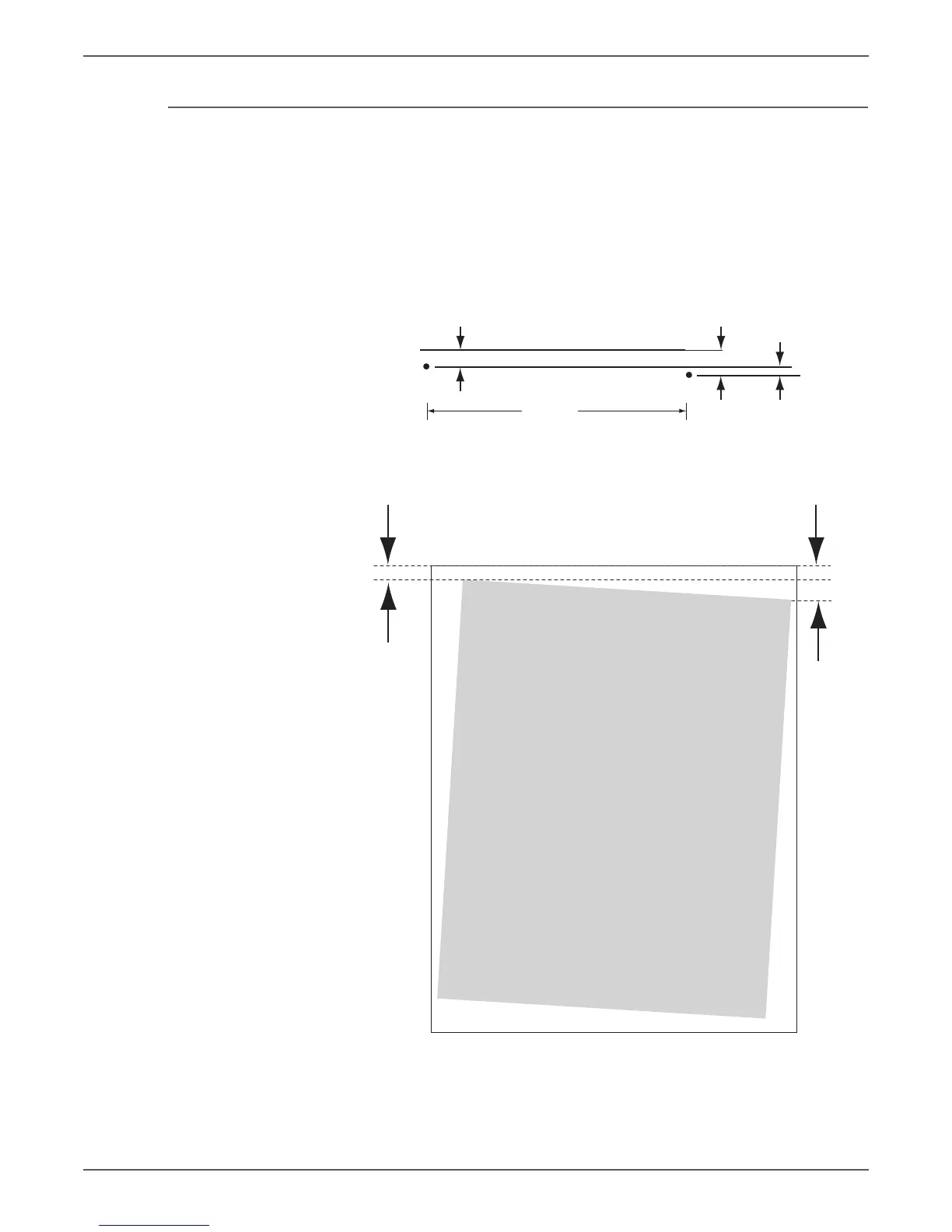

To measure skew, measure the margin of the paper at the leading edge of each
corner, and then take the difference between them.
Note
The most common reason for skew to be out of specification is because the
paper guides are set incorrectly.
Main Paper Tray (A4)
Main Paper Tray (LTR)
Bypass Tray (A4)
Bypass Tray (LTR)
180 mm ± 1.4 mm
200 mm ± 1.5 mm
180 mm ± 2.0 mm
200 mm ± 2.2 mm
Skew
Lead Edge
A
a = | T/E - C |
C
b = | T/E - D |
Skew = a - b
180 mm
s6000-242
B
A
Image Area

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
