Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 10-29

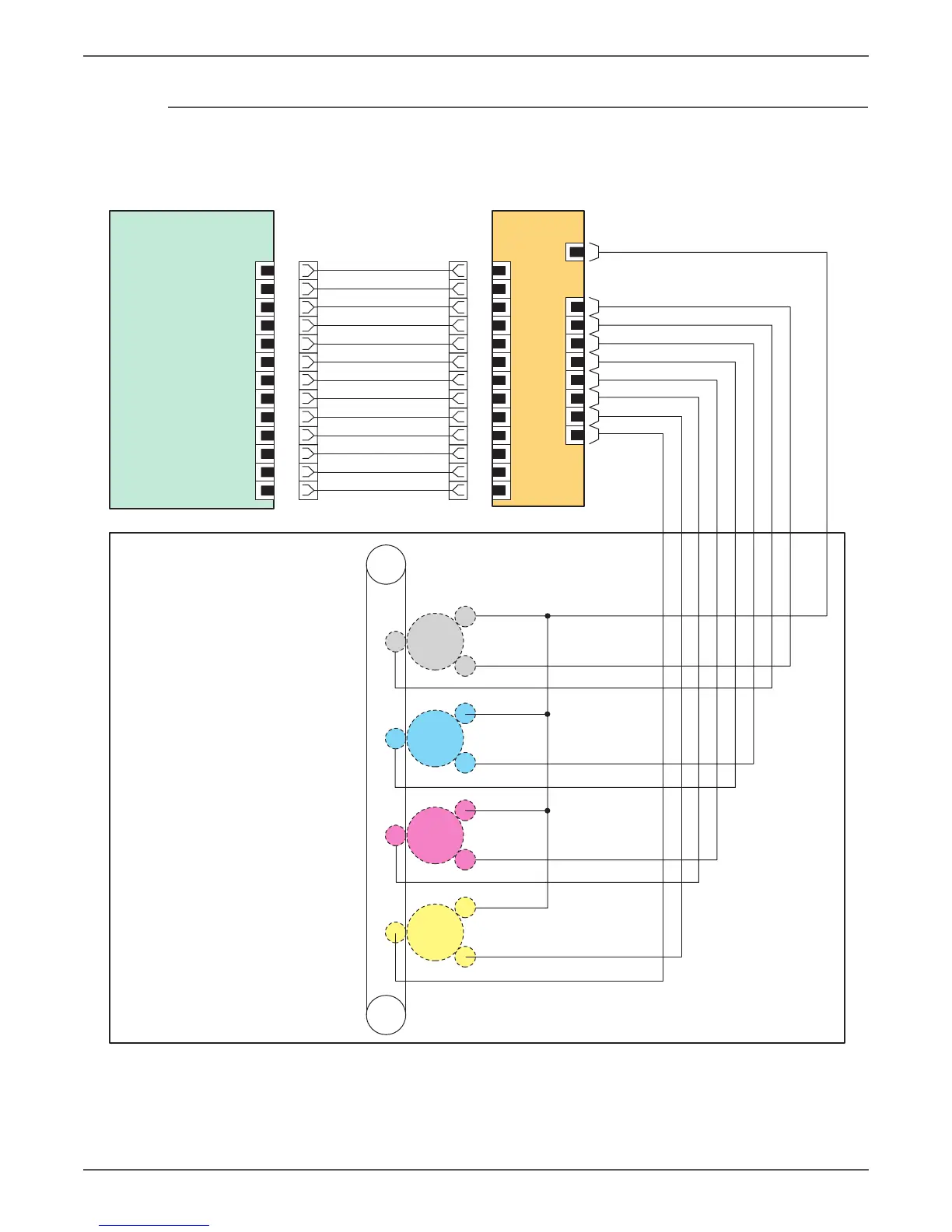

Wiring
WorkCentre 6015 MFP HVPS
MCU Board
PL7.2.2
LPH Developer Belt
PL3.1.1
P/J21
1
2
3
4
5
6
7
8
9
10
11
12
13
HVPS
PL7.2.3
HVPS Harness
PL7.2.13
P/J210
BCR
BTR
BTR : Bias Transfer Roller
BCR : Bias Charge Roller
Developer
13
12
11
10
9
8
7
6
5
4
3
2
1
DEV DA
DEV AC
TR1+ DA
TR2- DA
TR2+ DA
TR1 I MON
TR2 I MON
CR DA
HV CLK
+3.3V
SG
SG
+24V
s6015-061
K
C
M
Y

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
