Xerox PHASER 6010 - Perpendicularity; Magnification Error

5-54 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Image Quality
Perpendicularity
140 mm ± 1.0 mm
Magnification Error
Horizontal
A4
LTR
180 mm ± 0.5 mm
200 mm ± 0.5 mm
Vertical
A4
LTR
280 mm ± 0.5 mm
260 mm ± 0.5 mm

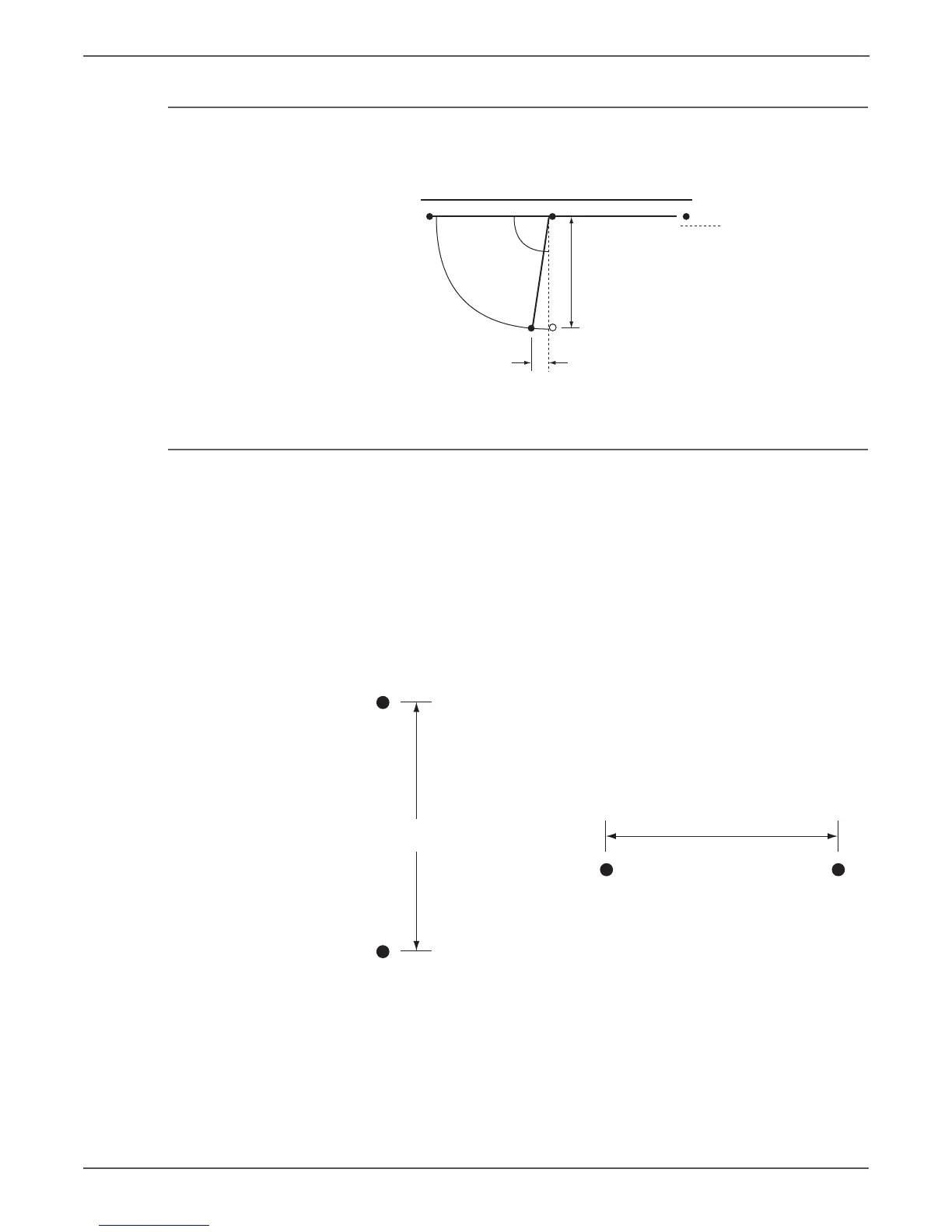

Perpendicularity
Lead Edge
Assumed Perfect Line
Perpendicularity = F - b (within ±1.0 mm)
A
B
C
90
140 mm
F
b
Magnication
B
J
EG
Magnication = Measured Length / Nominal
Nominal = 280 mm
LTR Nominal = 260 mm
A4 Nominal = 180 mm
LTR Nominal = 200 mm
