Xerox PHASER 6010 Service Manual

2-74 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation

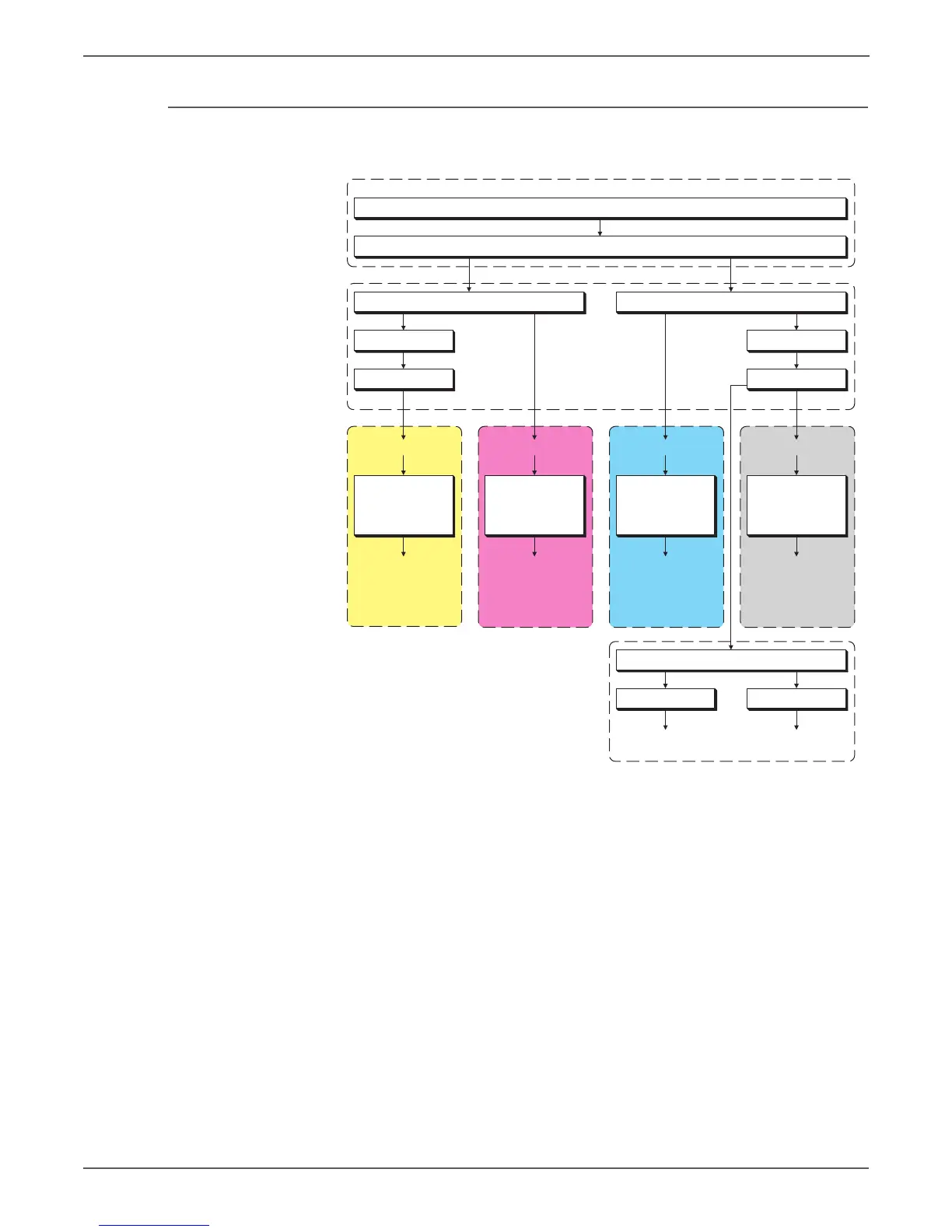

Drum, Belt Drive, and Excess Toner Collecting Drive Flow
Motor Drive
Main Motor
Gear X1
[ Name Of Moving Parts ]
Idler Gear X
Gear DRV
Gear X2
Idler Gear X
Gear X2
MU Drive
Xerographic
Developer (Y)
[ Drum (Y) ] [ Drum (M) ]
[ Belt]
Auger Gear
[ Drum (C) ] [ Drum (K) ]
Gear X2
Gear T1
Gear X2
s6000-131
Xerographic
Cleaning
Auger Gear (Y)
Xerographic
Cleaning
Auger Gear (M)
Xerographic
Cleaning
Auger Gear (C)
Xerographic
Cleaning
Auger Gear (K)
[Xerographic
Cleaning Auger (Y)]
[Xerographic
Cleaning Auger (M)]
[Xerographic
Cleaning Auger (C)]
[Xerographic
Cleaning Auger (K)]
Xerographic
Developer (M)
Xerographic
Developer (C)
Xerographic
Developer (K)
[Belt Cleaning Auger]
Belt

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
