Xerox PHASER 6010 - Workcentre 6015 MFP Covers; Workcentre 6015 MFP Top Cover

8-22 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
WorkCentre 6015 MFP Covers
WorkCentre 6015 MFP Top Cover
PL1.1.1
1. Remove the Main Paper Tray Cover (page 8-29).

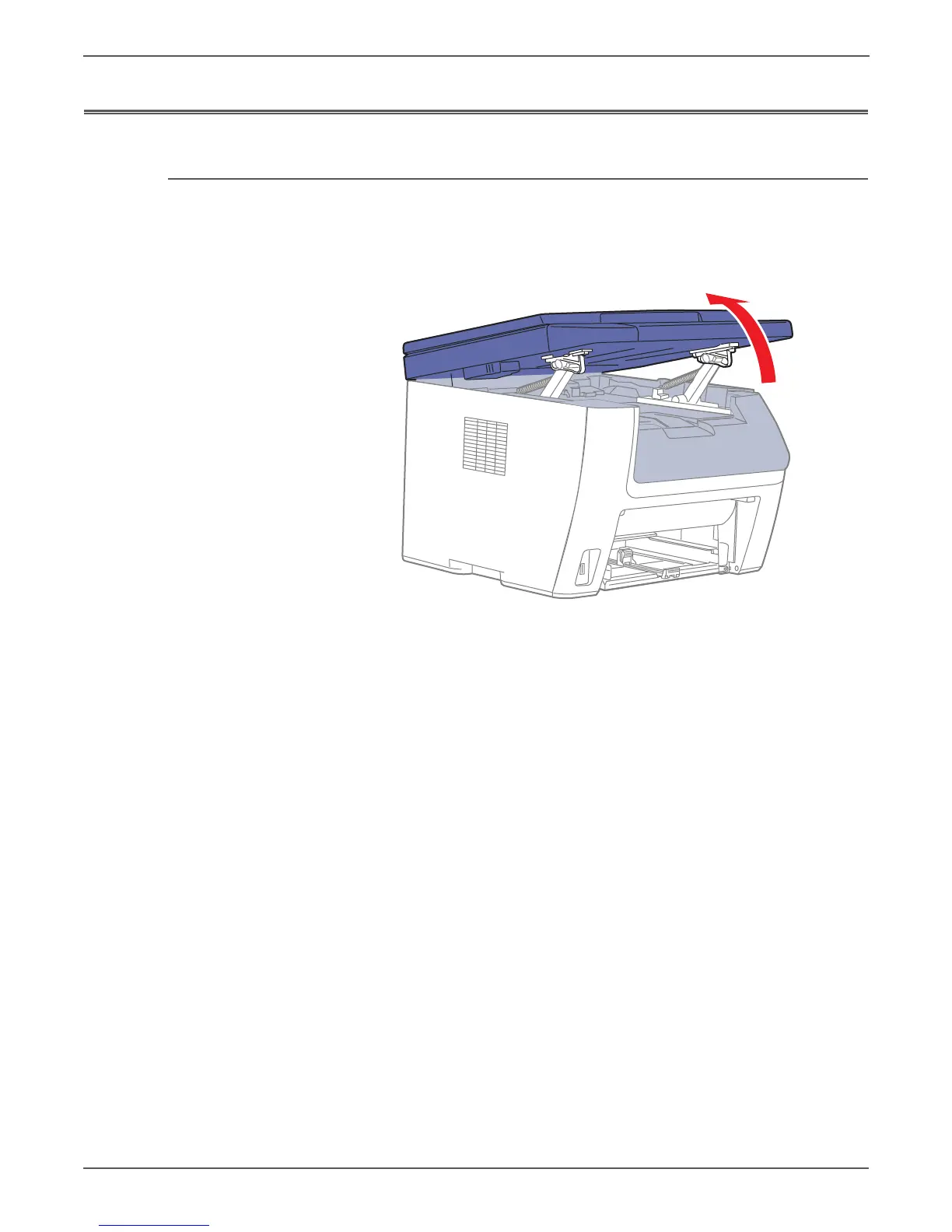

2. Lift the Scanner.
3. Remove the Output Tray Extension (page 8-31).
4. Open the Toner Door.
5. Remove the Front Cover (page 8-34).
6. Remove the Left Side Cover (page 8-22).
7. Remove the Scanner (page 8-35).
8. If present, remove the Wi-Fi Assembly (page 8-103)
9. Open the Rear Door.
s6015-065
