Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-23
Service Parts Disassembly

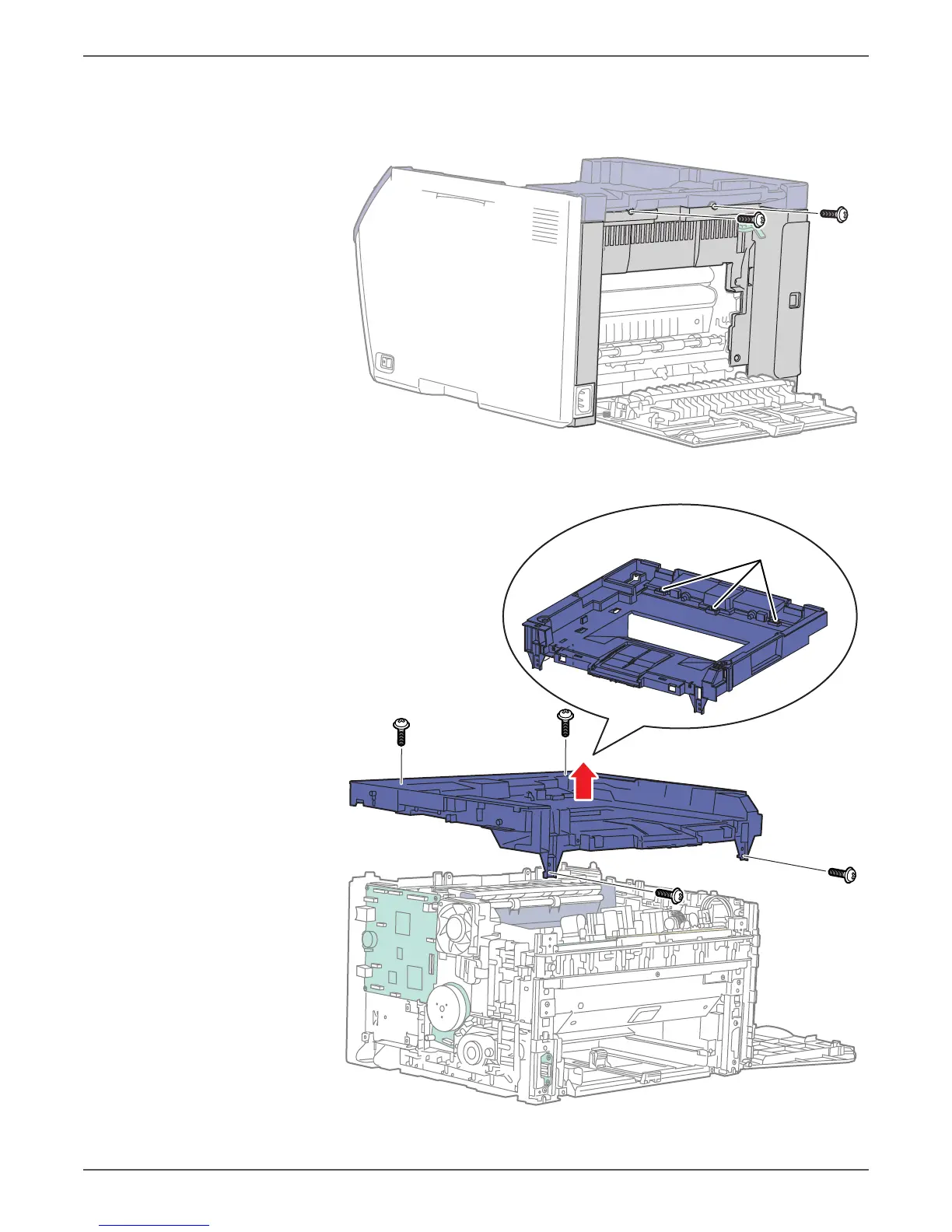

10. Remove the 2 screws (silver, tap, 8 mm) that fix the Top Cover to the printer.
11. Remove 4 screws (silver, M3m 6 mm) that fix the Top Cover to the printer.
12. Release the 3 hooks and remove the Top Cover from the printer.
s6015-103
To Next Page
